7S3002 Bearing suitable：D4H, D5H, D7R, D8R.
Brand:
ZHZBItem NO.:
7S3002Payment:
T/T ; Western Union; MoneygramProduct Origin:
CHINAShipping Port:
Guangzhou,Qingdao,Shanghai,Ningbo,ShenzhenLead Time：
1-2 Work dayCaterpillar Bulldozer Bearing 7S3002
|
P/N |
7S3002 |
Material: |
GCR15 |
|
i/d |
mm |
O/D |
mm |
|
H |
mm |
Brand： |
ZHZB |
|
Precision |
P0 , P6 , P5 |
Structure: |
Ball Bearings |
| Minimum order quantity | Negotiable | market price | Negotiable |
Product features:
Precision Grades for Every Need
Genuine OEM-Equivalent Performance
Production Process
Product Photos
Caterpillar 7S3002 Cylindrical roller bearing
Fits:D4H, D5H, D7R, D8R.
CAT,7S3002Your Reliable Replacement

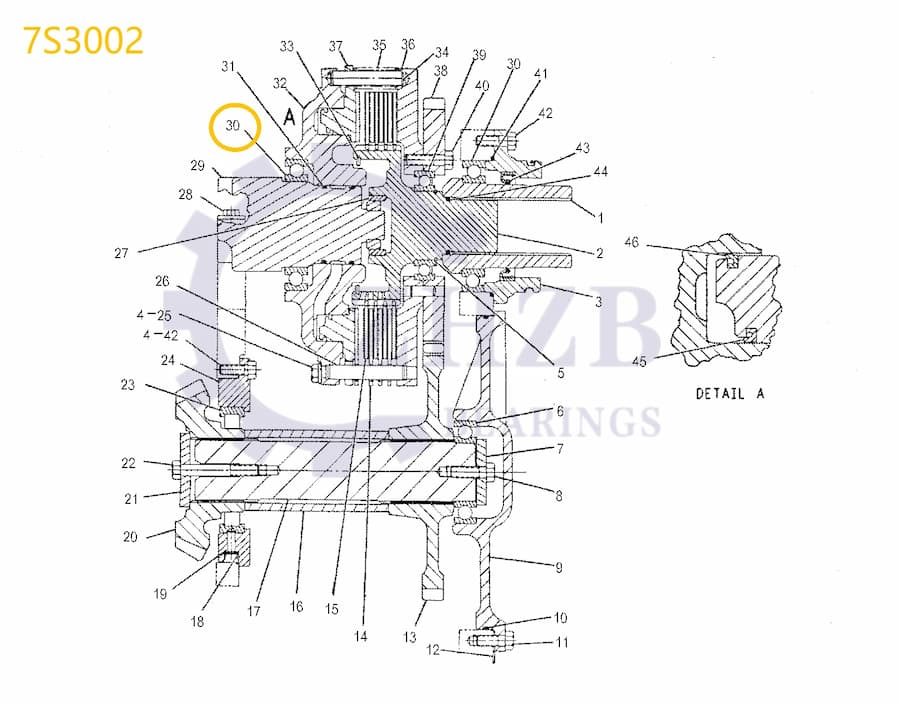

Any other parts for the final drive gearbox system you need pls search from below picture and form list then mark to me we will quote to you
Reluted produts
|
Pos. |
Part No |
Qty |
Parts name |
|
1 |
7G-5114 |
1 |
COUPLING |
|
2 |
7G-5108 |
1 |
HUB-CLUTCH |
|
3 |
7G-5115 |
1 |
RETAINER-SEAL |
|
4 |
5M-2894 |
12 |
WASHER-HARD (10.2X18.5X2.5-MM THK) |
|
5 |
061-6711 |
1 |
RING-RETAINING |
|
6 |
1T-0043 |
1 |
BALL BEARING |
|
7 |
5S-3552 |
1 |
PLATE |
|
8 |
1A-2209 |
1 |
BOLT (3/8-24X1.25-IN) |
|
9 |
1P-6174 |
1 |
CAGE-BEARING |
|
10 |
5H-4909 |
1 |
SEAL-O-RING |
|
11 |
0S-1594 |
6 |
BOLT (3/8-16X1-IN) |
|
12 |
1P-6175 |
6 |
SHIM PACK (INCLUDES 4-SHIMS) |
|
13 |
7G-5111 |
1 |
GEAR (50-TEETH) |
|
14 |
9P-3242 |
4 |
PLATE-CLUTCH |
|
15 |
6T-4943 |
4 |
DISC-FRICTION |
|
16 |
7G-5117 |
1 |
SPACER |
|
17 |
7G-5116 |
1 |
SHAFT-PINION |
|
18 |
0L-1026 |
1 |
PLUG-CUP |
|
19 |
4M-1712 |
1 |
DOWEL |
|
20 |
7T-8341 |
1 |
PINION-BEVEL (29-TEETH) |
|
21 |
3S-4388 |
1 |
WASHERRETAINING (10.31X63.5X8.64-MM THK) |
|
22 |
0L-0139 |
1 |
BOLT (3/8-24X2.75-IN) |
|
23 |
1J-9227 |
1 |
BEARING |
|
24 |
1P-6173 |
1 |
CAGE-BEARING |
|
25 |
0L-1352 |
8 |
BOLT (3/8-16X3.25-IN) |
|
26 |
1A-0646 |
4 |
DOWEL |
|
27 |
7T-8324 |
1 |
BUSHING |
|
28 |
1A-5822 |
2 |
BOLT (1/2-13X2.75-IN) |
|
- |
5P-8245 |
2 |
WASHER-HARD (13.5X25.5X3-MM THK) |
|
29 |
7G-5104 |
1 |
MANIFOLD AS |
|
- |
4B-9783 |
1 |
BALL |
|
30 |
7S-3002 |
2 |
BALL BEARING |
|
31 |
7G-4822 |
2 |
RING-SEAL |
|
32 |
7G-5324 |
1 |
HOUSING ASCLUTCH |
|
- |
8B-1312 |
2 |
DOWEL |
|
33 |
3K-2556 |
1 |
RING-RETAINING |
|
34 |
1A-0646 |
8 |
DOWEL |
|
35 |
7G-5378 |
8 |
SPRING |
|
36 |
7G-5109 |
1 |
PLATE |
|
37 |
7G-5107 |
1 |
PISTON |
|
38 |
7G-5110 |
1 |
GEAR-INPUT (50-TEETH) |
|
39 |
9U-9490 |
1 |
BALL BEARING |
|
40 |
7B-3235 |
9 |
BOLT (1/2-13X1.375-IN) |
|
41 |
9M-9729 |
1 |
SEAL-O-RING |
|
42 |
1A-2029 |
9 |
BOLT (3/8-16X1.125-IN) |
|
43 |
4B-8024 |
1 |
SEAL-LIP TYPE |
|
44 |
2H-3927 |
1 |
SEAL-O-RING |
|
45 |
9P-6883 |
1 |
RING-SEAL |
|
46 |
3P-4583 |
1 |
RING-SEAL |
|
47 |
7G-5099 |
1 |
COVER |
|
48 |
0S-1594 |
16 |
BOLT (3/8-16X1-IN) |
|
49 |
0S-1588 |
2 |
BOLT (3/8-16X1.25-IN) |
|
50 |
7G-5098 |
1 |
WASHERRETAINING |
|
51 |
7G-5084 |
1 |
SHAFT AS-CLUTCH |
|
- |
4B-9784 |
1 |
BALL |
|
52 |
1H-8128 |
1 |
SEAL-O-RING |
|
53 |
7G-5097 |
1 |
CAGE-BEARING |
|
54 |
5P-2545 |
1 |
SEAL-O-RING |
|
55 |
7G-5100 |
2 |
SHIM PACK (INCLUDES 6 SHIMS) |
|
56 |
9S-3581 |
2 |
CUP-BEARING |
|
57 |
9S-3582 |
2 |
CONE-BEARING |
|
58 |
9F-7378 |
2 |
RING-SEAL |
|
59 |
7G-5096 |
1 |
SLEEVE-SEAL RING |
|
60 |
7G-5087 |
2 |
HUB |
|
61 |
7G-5093 |
1 |
HUB |
|
62 |
1T-1466 |
1 |
CAM-FREEWHEEL |
|
63 |
2P-1005 |
4 |
BUSHING |
|
64 |
1P-6071 |
6 |
RACE-THRUST BEARING |
|
65 |
1P-6070 |
3 |
BEARING-THRUST |
|
66 |
3J-8903 |
2 |
RING-RETAINING |
|
67 |
7G-5090 |
1 |
HUB |
|
68 |
8F-8882 |
4 |
SEAL-O-RING |
|
69 |
7G-5085 |
1 |
SPACER |
|
70 |
8B-8439 |
2 |
BALL BEARING |
|
71 |
2P-1990 |
2 |
SPACER |
|
72 |
1P-6182 |
1 |
GEAR-SUN (35-TEETH) |
|
73 |
2P-1985 |
1 |
SHIM PACK (INCLUDES 4-SHIMS) |
|
74 |
2S-6408 |
1 |
WASHERRETAINING (0.531X3.25X0.438-IN THK) |
|
75 |
0L-2315 |
1 |
BOLT (1/2-20X3.5-IN) |
|
76 |
1T-0680 |
13 |
SPRINGFREEWHEEL |
|
77 |
7T-2636 |
13 |
ROLLER |
|
78 |
4D-1992 |
1 |
RING-RETAINING |
|
79 |
1T-0807 |
1 |
RACE-THRUST BEARING |
|
80 |
6T-6124 |
2 |
RING-RETAINING |
|
81 |
9W-4333 |
1 |
PLATE |
|
82 |
0S-1619 |
16 |
BOLT (3/8-16X3-IN) |
|
83 |
7G-5095 |
2 |
PLATE-LOCK |
|
84 |
7G-5092 |
1 |
HUB |
|
85 |
6V-0321 |
2 |
RING-RETAINING |
|
86 |
9M-6590 |
32 |
BOLT-12 POINT HEAD (1/2-13X1-IN) |
|
87 |
7T-8342 |
2 |
GEAR-BEVEL (59-TEETH) |
|
88 |
7G-5088 |
2 |
PLATE |
|
89 |
7G-5089 |
2 |
HOUSING |
|
90 |
2P-4370 |
8 |
PLATE-CLUTCH |
|
91 |
6T-4944 |
10 |
DISC-FRICTION |
|
92 |
1P-6179 |
2 |
HUB AS (EACH INCLUDES) |
|
- |
8B-1312 |
2 |
DOWEL |
|
93 |
6P-3767 |
4 |
SPRING-DISC |
|
94 |
8S-3371 |
2 |
RING-SEAL |
|
95 |
1S-9497 |
2 |
RING-SEAL |
|
96 |
0S-1590 |
16 |
BOLT (3/8-16X2-IN) |
|
97 |
1P-6153 |
2 |
PLATE |
|
98 |
7G-5086 |
2 |
MANIFOLD |
|
99 |
5M-2894 |
2 |
WASHER-HARD (10.2X18.5X2.5-MM THK) |
|
100 |
1P-6209 |
1 |
CAGE-BEARING |
|
101 |
2P-1981 |
1 |
GEAR-RING (81-TEETH) |
Professional charging station logistics | Full range of specifications, rapid response
We support export and accept customization. Global customers are welcome!
Bearing inspection
We place great emphasis on quality control and have established a comprehensive quality inspection system. From raw material warehousing to delivery, every purchase and every bearing undergoes rigorous inspection and testing to ensure that we provide our customers with stable, reliable, and standard-compliant products.
Participating in the 2024 Shanghai bauma Exhibition
At ZHZB, we operate with a comprehensive quality control system at its core. From raw material inspection upon arrival to final product delivery,
every sensor undergoes 100% inspection and accuracy verification, strictly adhering to ISO 9001 and other international standards.
This ensures that we provide reliable bearing components for high-end equipment in industries such as mining, road construction, and wind power.
Delivery：
1.We will send express delivery for less than 45 kg, which is more convenient door-to-door
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs
Why choose us?
✬1.Trusted Product
✬2.Advanced Technology
✬3.Reliable Service
✬4.Competitive price
FAQ
Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.
Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q3: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1 pc for quality testing if we have the item you need in stock
Warranty
1. Warranty period:A 3-month warranty period is provided for the product from the date of arrival. After the customer arrives, the items should be checked against the order list. Contact us and provide any possible data on the item in question.
2. You need to pay the replacement costs in the following situations:
* Wrong orders from customers.
* Any force majeure causes damage.
* Wrong installation.
* Overtime and overload work on parts.
* Lost due to any circumstances.
* Human factors are destroyed.
* Rust and corrosion during storage and operation.
* The warranty has expired.
3. Other
This kind of product is easy to rust, please pack it and store it properly.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
