Caterpillar Differential Bevel Gear GP 1P-4694 Bearing Suitable:D300E,D350E,725,735, 824B, 825C, 826C, 988, 994, 994D.
Brand:
ZHZBItem NO.:
1P‑4694Payment:
T/T ; Western Union; MoneygramWeight：
1.8KGProduct Origin:
CHINAShipping Port:
Guangzhou,Qingdao,Shanghai,Ningbo,ShenzhenLead Time：
1-2 Work dayCaterpillar Articulated Truck 1P‑4694
|
P/N |
1P‑4694 |
Material: |
GCR15 |
|
i/d |
mm |
O/D |
mm |
|
H |
mm |
Brand： |
ZHZB |
|
Precision |
P0 , P6 ,P5 |
Structure: |
Tapered Roller Bearing |
| Minimum order quantity | Negotiable | market price | Negotiable |
Product feature:
✅Developed for differential bevel gear of Caterpillar D300E D350E 725 735 824B 825C 826C 988 994 994D articulated truck, direct fit replacement
✅Optimized tapered roller construction withstands heavy combined loads under mining conditions
✅Premium bearing steel substrate, excellent impact and wear resistance for harsh site environment
✅P0 P6 P5 precision grades available for OEM and modified assembly standards
✅Reduce transmission noise, avoid sudden differential failure and cut downtime loss
✅Tolerance matched with original parts for perfect fitting
Our advantae:
✅Specialize in construction machinery matching bearings, cover main brands including Caterpillar, Komatsu, Doosan, Volvo
✅Multi‑step inspection for each finished product to control dimension and hardness for stable quality
✅Flexible precision‑grade ordering for repair, refurbishment and OEM assembly scenarios
✅Large stock of machinery bearings to shorten customer waiting cycle
✅Professional technical staff help verify part numbers and machine compatibility
✅Complete foreign‑trade workflow, one‑stop service for quotation packing booking and shipment
✅Quick after‑sales response to troubleshoot fitting and part‑selection issues
Production Process:
YOUTUBE

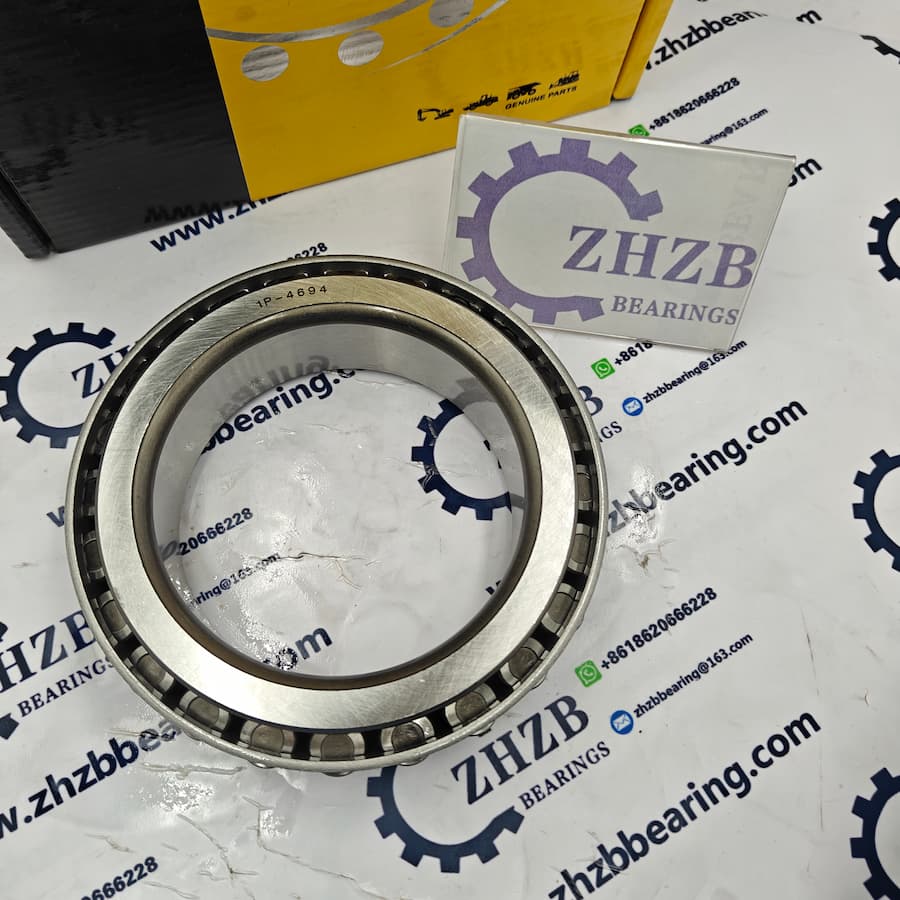

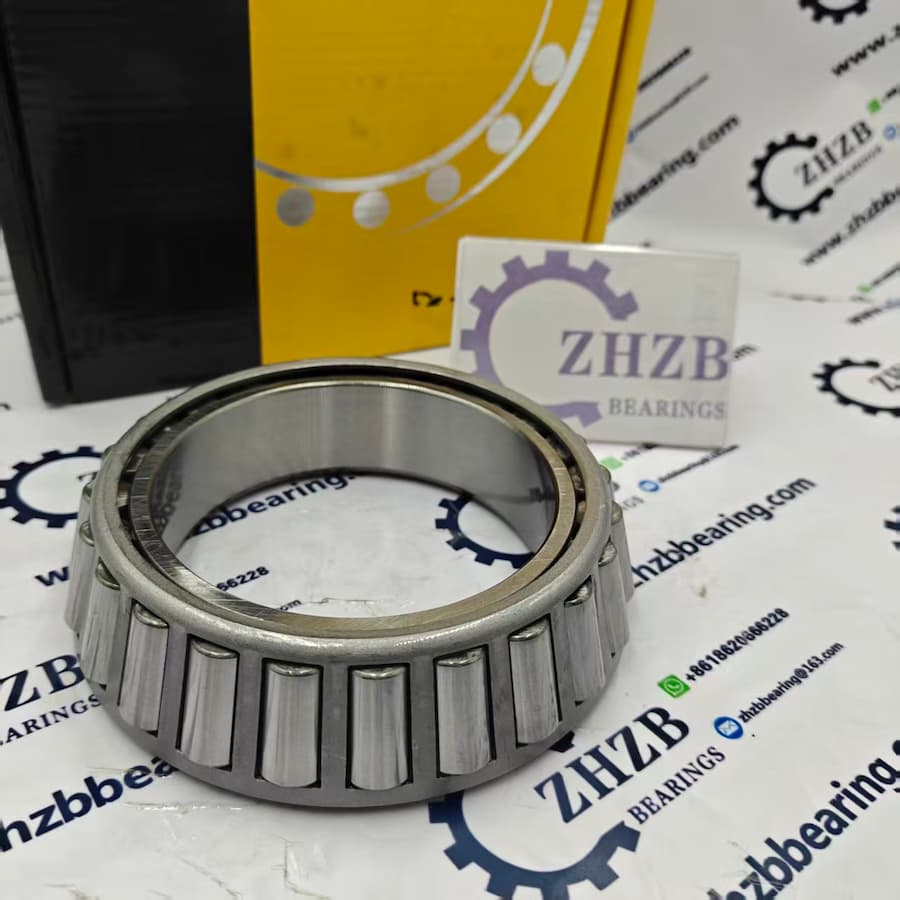

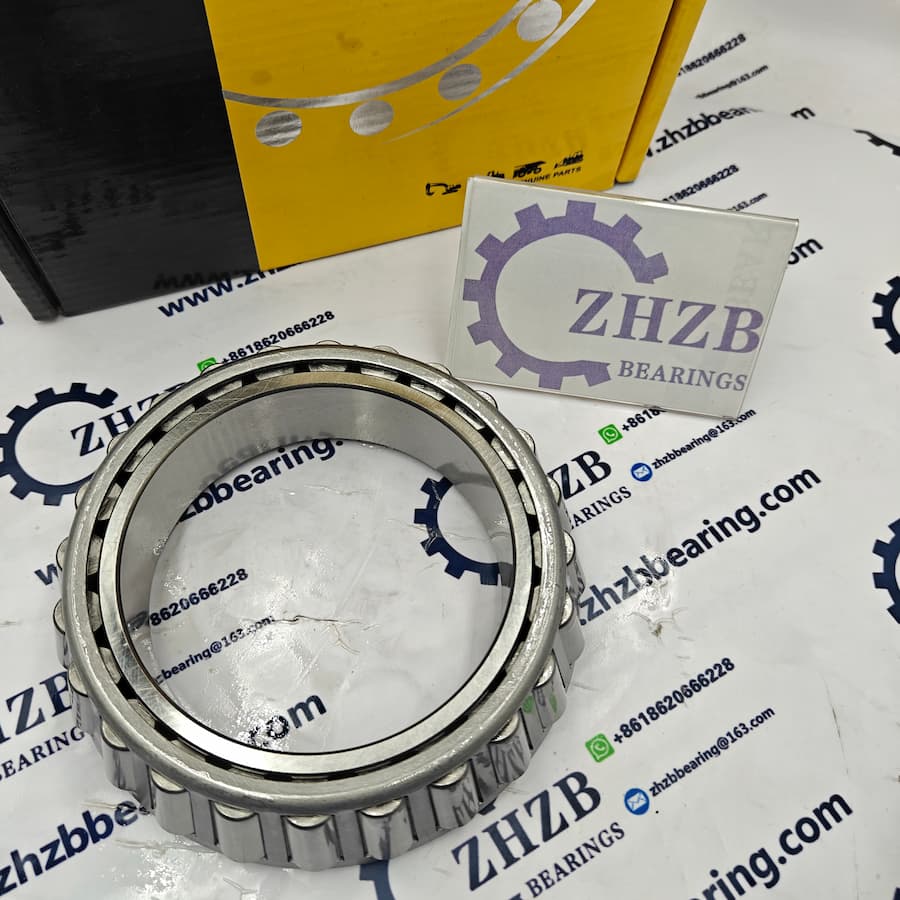

Product Photos
‑ High‑hardness bearing steel resists wear from sand and dust
‑ Fit differential bevel gear position of Caterpillar articulated truck

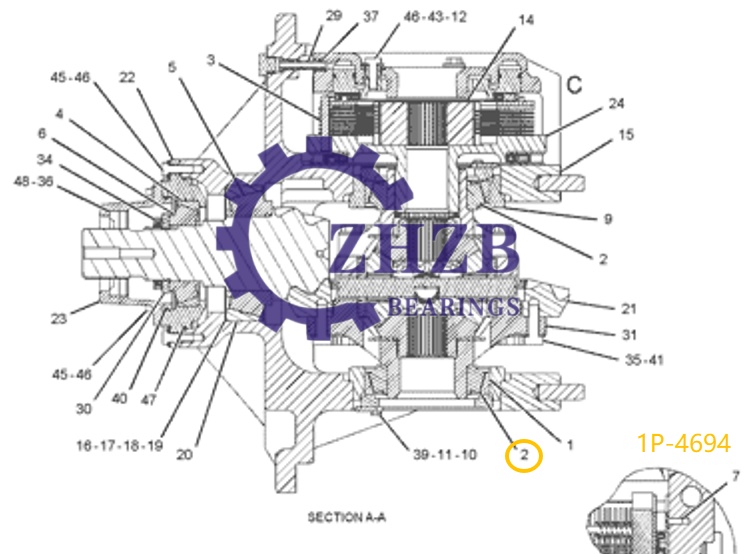

Any other parts for the final drive gearbox system you need pls search from below picture and form list then mark to me we will quote to you
Reluted Produts
Pos.
Part No
Qty
Parts name
1
1P-4693
2
CUP-BEARING
2
1P-4694
2
CONE-BEARING
3
3S-1374
3
SPRING
4
5L-2031
1
CUP-BEARING
5
5P-9505
1
CONE-BEARING
6
6V-3950
1
CONE-BEARING
7
127-1960
8
SCREW-FLAT HEAD (M6X1X16-MM)
8
136-6324
6
DISC-FRICTION
9
138-1486
2
CAGE-BEARING
10
138-1487
2
RING ADJUSTMENT
11
138-1488
2
LOCK
12
138-1490
3
SPACER (10.2X18X15-MM THK)
13
138-1504
1
PISTON HOUSING
14
138-1508
1
HUB
15
138-3689
1
CARRIER GP DIFFERENTIAL (FRONT, REAR)
16
138-4096
5
SHIM (0.05-MM THK)
17
138-4097
5
SHIM (0.08-MM THK)
18
138-4098
3
SHIM (0.12-MM THK)
19
138-4099
1
SHIM (0.5-MM THK)
20
1J-2860
1
CUP-BEARING
21
147-7247
1
GEAR SET BEVEL (47-TEETH)
22
147-7248
1
CAGE
23
147-7249
1
RETAINER SEAL
24
151-8268
1
HUB AS
25
151-8274
6
PLATE-CLUTCH
26
151-8275
2
PLATE-CLUTCH
27
151-8397
2
PLATE
28
160-8060
1
PISTON
29
163-1921
1
TUBE
30
176-5445
1
SPACER (65.35X95.5X8-MM THK)
31
193-4302
1
DIFFERENTIAL GP
32
217-3252
1
BEARING NEEDLE
33
224-2323
1
BEARING THRUST
34
250-7858
1
LOCKNUT
35
0S-1603
28
BOLT (1/2-20X1.5-IN)
36
123-4003
1
SEAL-LIP TYPE
37
4J-2506
2
SEAL-O-RING
38
4K-6804
1
SEAL-O-RING
39
5C-9553
4
BOLT (M6X1X16-MM)
40
5F-3106
1
SEAL-O-RING
41
5P-8245
32
WASHER-HARD (13.5X25.5X3-MM THK)
42
7X-0909
4
BOLT (M12X1.75X140-MM)
43
7X-7729
3
WASHER (11X25X3-MM THK)
44
8C-3347
2
PIN-ROLL
45
8T-4121
16
WASHER-HARD (11X21X2.5-MM THK)
46
8T-4195
19
BOLT (M10X1.5X30-MM)
47
9F-1399
2
SEAL-O-RING
48
1U-8846
1
SEALANT GASKET
Factory processing and inventory
Professional charging station logistics | Full range of specifications, rapid response
We support export and accept customization. Global customers are welcome!
Bearing inspection
We place great emphasis on quality control and have established a comprehensive quality inspection system. From raw material warehousing to delivery, every purchase and every bearing undergoes rigorous inspection and testing to ensure that we provide our customers with stable, reliable, and standard-compliant products.
Participating in the 2024 Shanghai bauma Exhibition
At ZHZB, we operate with a comprehensive quality control system at its core. From raw material inspection upon arrival to final product delivery,
every sensor undergoes 100% inspection and accuracy verification, strictly adhering to ISO 9001 and other international standards.
This ensures that we provide reliable bearing components for high-end equipment in industries such as mining, road construction, and wind power.
Delivery：
1.We will send express delivery for less than 45 kg, which is more convenient door-to-door
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs
Why choose us?
Trusted Product: Durable bearing steel materialFAQ
Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.
Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q3: Where does bearing 1P‑4694 install?
A: It fits differential bevel gear group of Caterpillar articulated truck, compatible with D300E, D350E, 725, 735, 824B, 825C, 826C, 988, 994, 994D.
Q4: What load can this bearing take?
A: It is tapered roller bearing, supports both radial and axial load for heavy‑duty mining work.
Q5: What precision options are available?
A: P0, P6, P5 for different real‑world machine working conditions.
Q6: What is raw material, suitable for tough site?
A: Made of bearing steel, good impact and wear resistance for mine and quarry working environment.
Q7: What is net weight?
A: Net weight 1.8kg.
Q8: Can I install it directly on machine?
A: Dimension matches OEM standard, suitable for direct replacement during machine repair.
Q9: Can we order custom precision grade?
A: Orders for P0 P6 P5 different precision are acceptable.
Q10: Why noise occurs after installation?
A: Check fitting clearance, assembly skill and condition of matched gears and related components.
Q11: Do you supply other Caterpillar heavy‑duty bearings besides 1P‑4694?
A: Yes, full range bearings for articulated trucks, loaders and bulldozers are available.
Warranty
1. Warranty period:A 3-month warranty period is provided for the product from the date of arrival. After the customer arrives, the items should be checked against the order list. Contact us and provide any possible data on the item in question.
2. You need to pay the replacement costs in the following situations:
* Wrong orders from customers.
* Any force majeure causes damage.
* Wrong installation.
* Overtime and overload work on parts.
* Lost due to any circumstances.
* Human factors are destroyed.
* Rust and corrosion during storage and operation.
* The warranty has expired.
3. Other
This kind of product is easy to rust, please pack it and store it properly.
