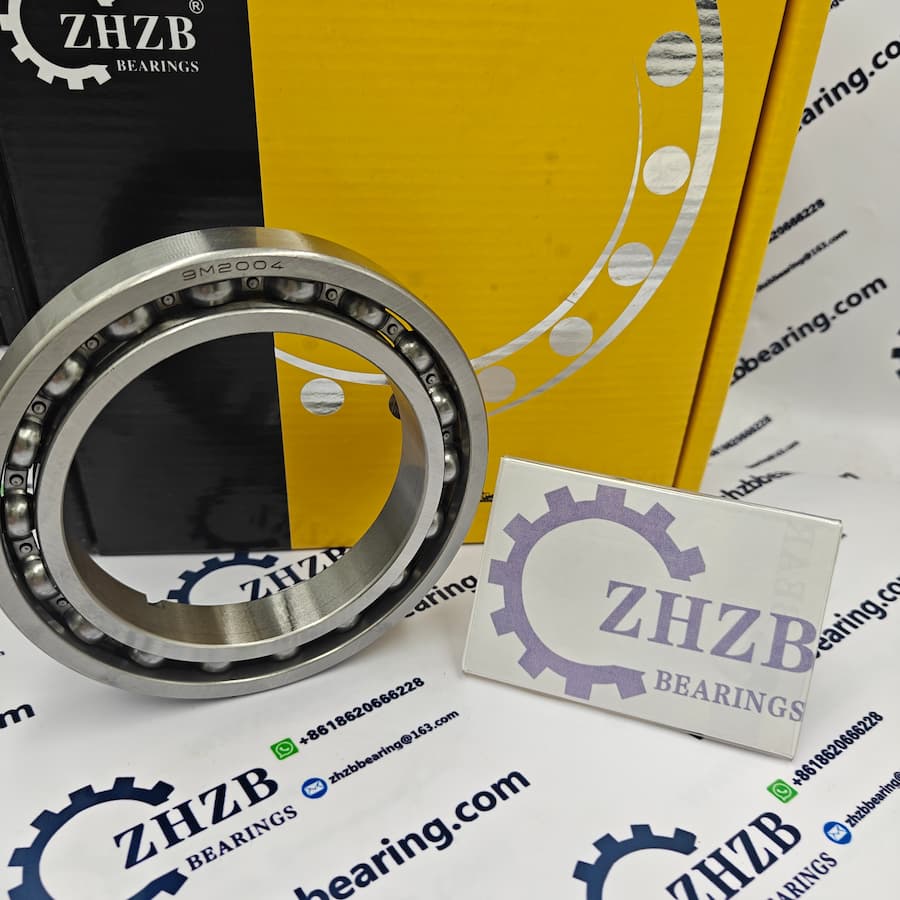

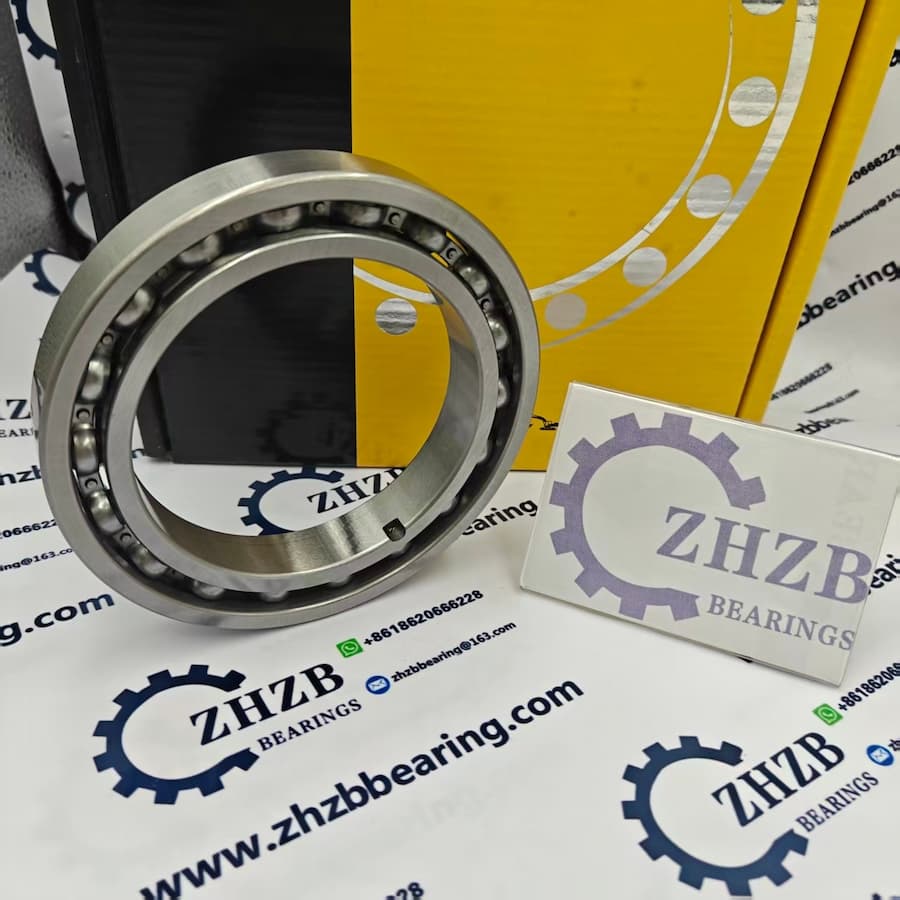

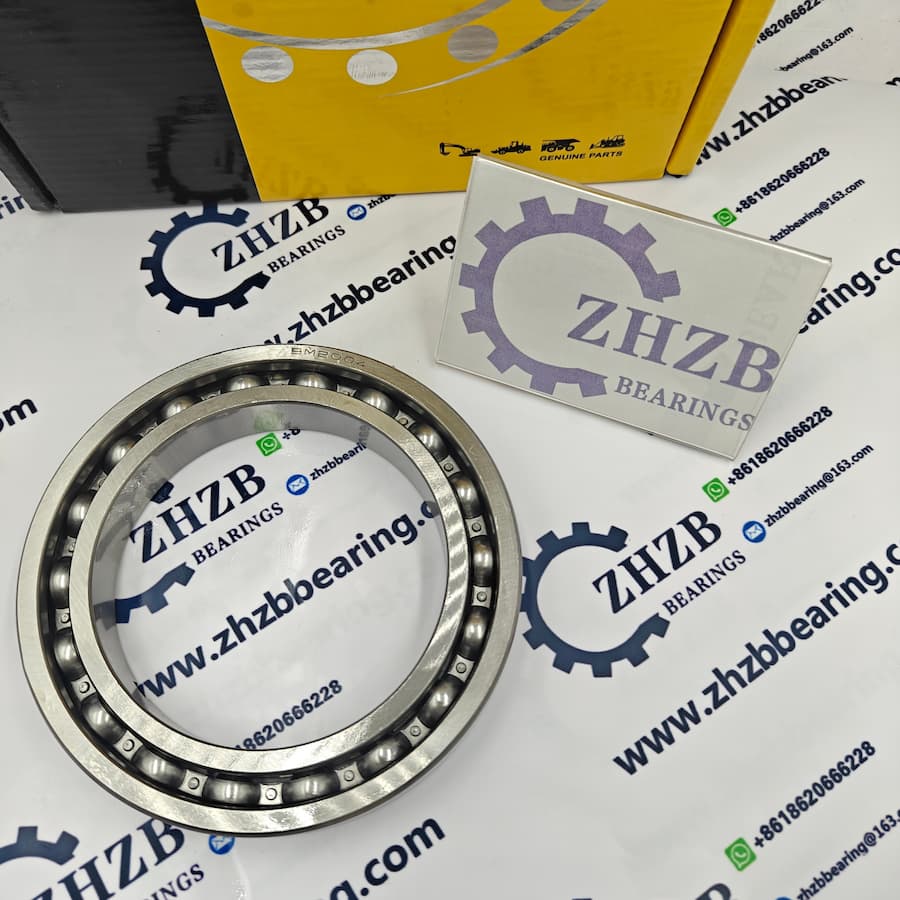

Caterpillar Bearing 9M2004 for Tractor D6D

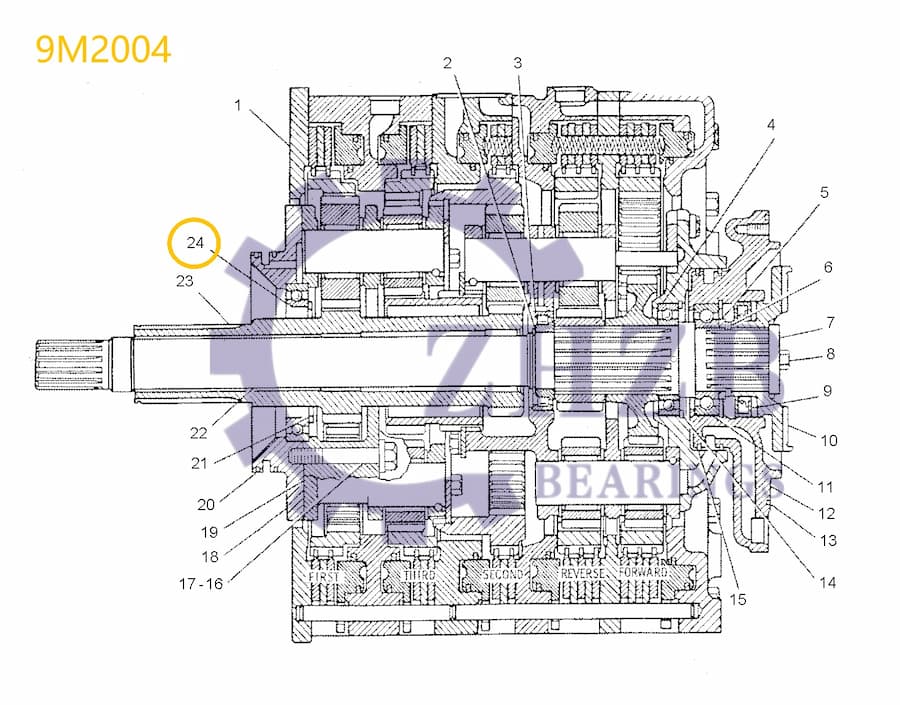

Pos.

Part No

Qty

Parts name

1

8M-8645

1

PLATE-CLUTCH REAR

-

7M-8479

1

DOWEL (LONG)

-

7M-8480

1

DOWEL (SHORT)

2

2M-3974

1

RING-RETAINING

3

5M-7936

1

BEARING-OUTER

-

5M-7934

1

RACE-SPECIAL ROLLER BEARING (INNER)

4

9M-1997

1

BALL BEARING

5

3P-5078

1

SPACER (1.98X2.5X.122-MM THK)

6

3S-6931

1

RING-RETAINING

7

3S-4388

1

WASHERRETAINING (10.31X63.5X8.64-MM THK)

8

0L-0139

1

BOLT (3/8-24X2.75-IN)

9

1S-6543

1

SEAL-LIP TYPE

10

8M-8628

1

FLANGE-JOINT

11

1T-0043

1

BALL BEARING

12

8M-8619

1

CAGE-BEARING

13

8F-6230

1

SEAL-O-RING

14

1K-6986

2

RING-RETAINING

15

1M-0498

2

RING-METAL SEAL

16

5P-8091

3

BOLT-LOCKING (1/2-13X3.25-IN)

17

2M-0849

3

WASHER-HARD (13.5X25.5X5-MM THK)

18

9M-1502

1

CAGE-BEARING

19

8M-8677

1

CARRIER-REAR

20

9M-1503

2

RING-METAL SEAL

21

1M-8652

1

RING-RETAINING

22

8P-6803

1

SHAFT AS

-

9M-2001

1

DOWEL

23

5M-7923

1

SHAFT-OUTPUT

24

9M-2004

1

BALL BEARING

25

5M-6126

21

BEARING ASROLLER

-

8E-8304

42

DISC-THRUST

26

7G-2513

6

GEARPLANETARY (26-TEETH)

27

9M-2049

2

GEAR-RING (96-TEETH)

28

6Y-5916

6

DISC-FRICTION

29

2P-4472

7

PLATE-CLUTCH

30

8M-8644

1

HOUSINGCLUTCH

31

7G-2476

6

GEARPLANETARY (20-TEETH)

32

4S-8708

1

HOUSINGCLUTCH

-

7M-8480

2

DOWEL (SHORT)

-

7M-8479

2

DOWEL (LONG)

33

4M-9592

30

SPRING

34

9P-5379

1

HOUSINGCLUTCH

35

7G-2475

3

GEARPLANETARY (24-TEETH)

36

8M-8646

1

PLATE ASCENTER

-

7M-8479

2

DOWEL

-

2D-6642

2

BALL

37

4M-1678

10

SPRING

38

9M-2013

1

HOUSING ASCLUTCH

-

2D-6642

2

BALL

39

5M-6211

3

SHAFTPLANETARY

40

2D-6642

3

BALL

41

5D-0353

6

BOLT-LOCKING (3/8-16X1-IN)

42

5M-6212

3

TUBE

43

8M-8623

1

GEAR-SUN (40-TEETH)

44

4S-8718

1

CAGE-CARRIER BEARING

45

5M-7900

9

BOLT (1/2-13X14-IN)

46

2M-0849

9

WASHER-HARD (13.5X25.5X5-MM THK)

47

5M-6120

1

GEAR-SUN (23-TEETH)

48

9M-1501

3

PLATE-LOCK

49

5K-9107

15

BOLT-LOCKING (3/8-16X0.75-IN)

50

1S-6527

3

PLATE-LOCK

51

9M-1995

1

GEAR-SUN (35-TEETH)

52

5M-6210

3

SHAFTPLANETARY

53

2D-6642

9

BALL

54

7M-1177

1

RING-METAL SEAL (STANDARD)

-

6P-8267

1

RING (.39MM .015IN OS)

-

9P-2944

1

RING (.77MM .030IN OS)

55

5M-6132

4

RING-METAL SEAL (STANDARD)

-

6P-8264

4

RING (.39MM .015IN OS)

-

6P-8258

4

RING (.77MM .030IN OS)

56

8M-8649

1

PISTON-CLUTCH

57

9M-1990

5

DOWEL

58

5M-7841

2

GEAR-RING (96-TEETH)

59

7T-2336

6

DISC-FRICTION

60

9P-5363

1

PISTON-CLUTCH

61

7G-2476

6

GEARPLANETARY (20-TEETH)

62

9M-1500

3

SHAFTPLANETARY

63

5M-7875

1

CARRIER-FRONT

64

5M-7869

1

GEAR-RING (96-TEETH)

65

8M-8650

3

PISTON-CLUTCH

66

4M-1641

5

DOWELREACTION

67

9M-1996

3

SHAFTPLANETARY

68

5M-6141

4

RING-METAL SEAL (STANDARD)

-

6P-8266

4

RING (.39MM .015IN OS)

-

9P-2945

4

RING (.77MM .030IN OS)

69

6K-7917

3

BOLT-LOCKING (1/2-13X1-IN)

70

9P-5364

1

RING-METAL SEAL (STANDARD)
