1P9341 BEARING AS-ROLLER Caterpillar parts fits: 120G, 12G, 130G, 140G, 160G.
Brand:
ZHZBItem NO.:
1P9341 1P-9341Order(MOQ):
1Payment:
T/T ; Western Union; MoneygramProduct Origin:
CHINAShipping Port:
Guangzhou，Qingdao,Shanghai,Ningbo,shenzhenLead Time：
3-7 days
Motor Grader Bearing 1P9341 1P-9341
Specification
|
P/N |
1P9341 |
Material: |
GCR15 |
|
i/d |
mm |
O/D |
mm |
|
H |
mm |
Brand： |
ZHZB |
|
Precision |
P0 , P6 , P5 |
Structure: |
Tapered Roller Bearing |
Product features:
1. Special needle roller bearings for construction machinery and equipment
2. High precision
3. Low operating noise
4. High speed, high radial load carrying capacity
Our advantage:
100% factory quality inspection;
Allow small orders;
Faster delivery time;
Higher cost performance;
With many domestic and foreign partners, absolute quality assurance;
Professional manufacturer of needle roller bearings. Have many years of manufacturing experience

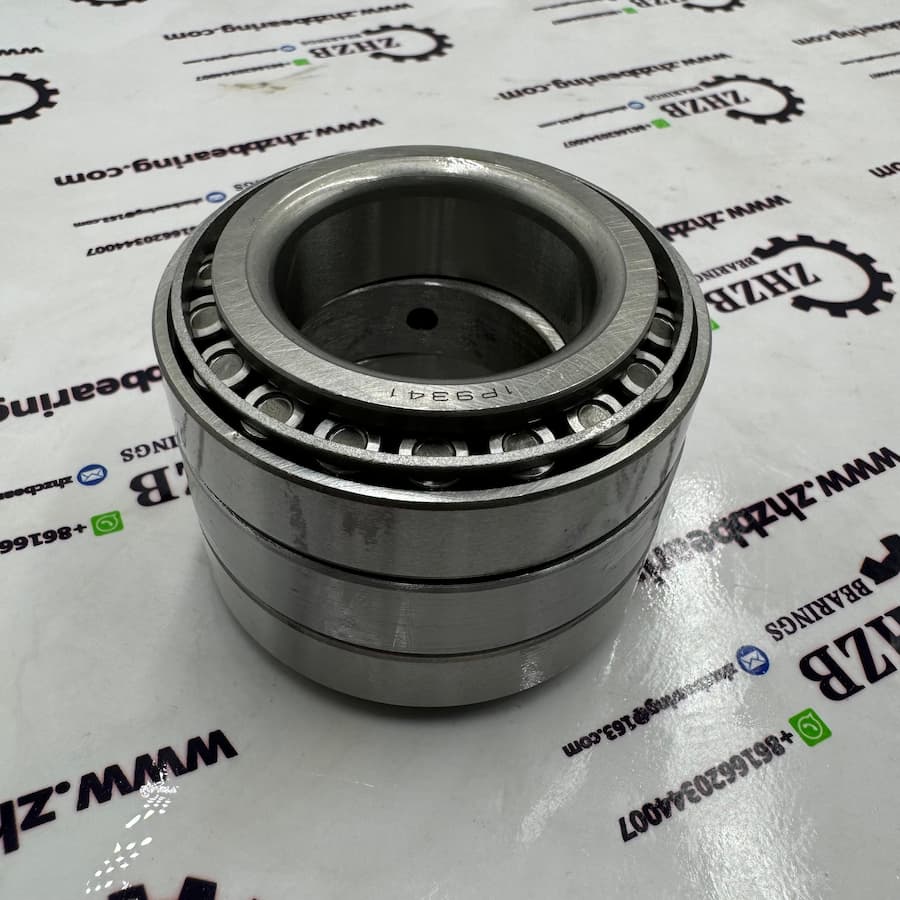

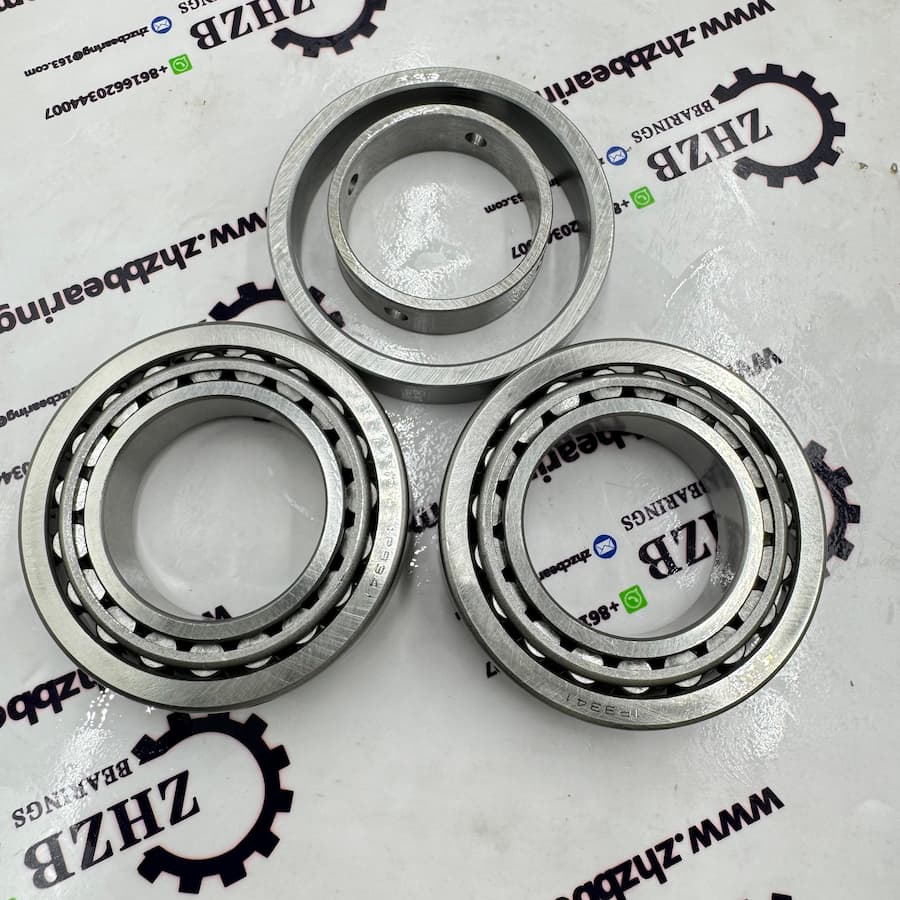

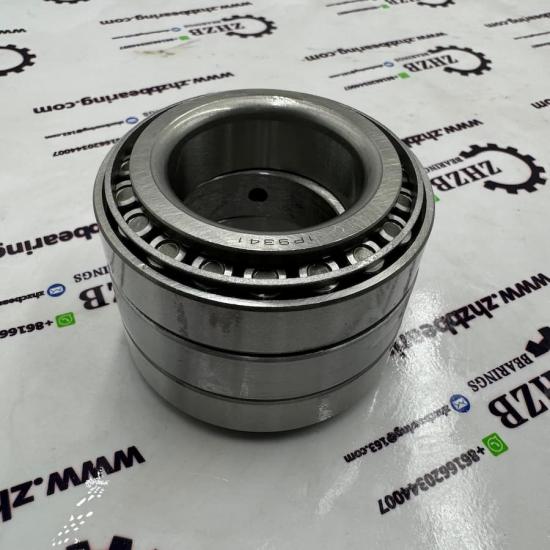

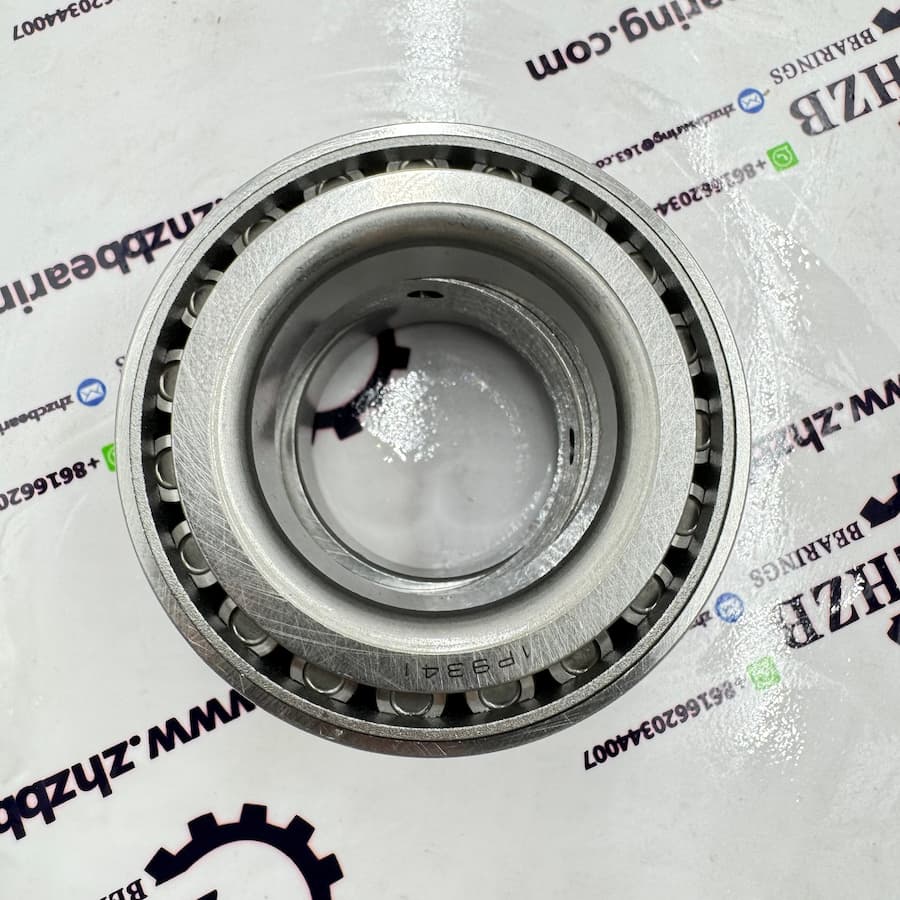

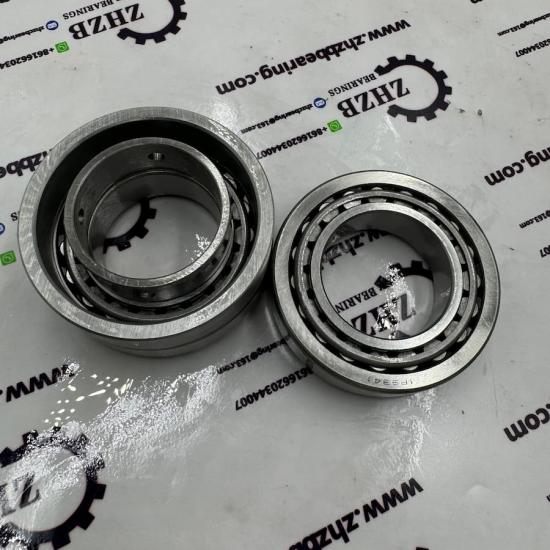

Product Photos
ZHZB with smoother rotation.with less noise.
This produst has a long service life due tois durable construction
Our product provides great value for money

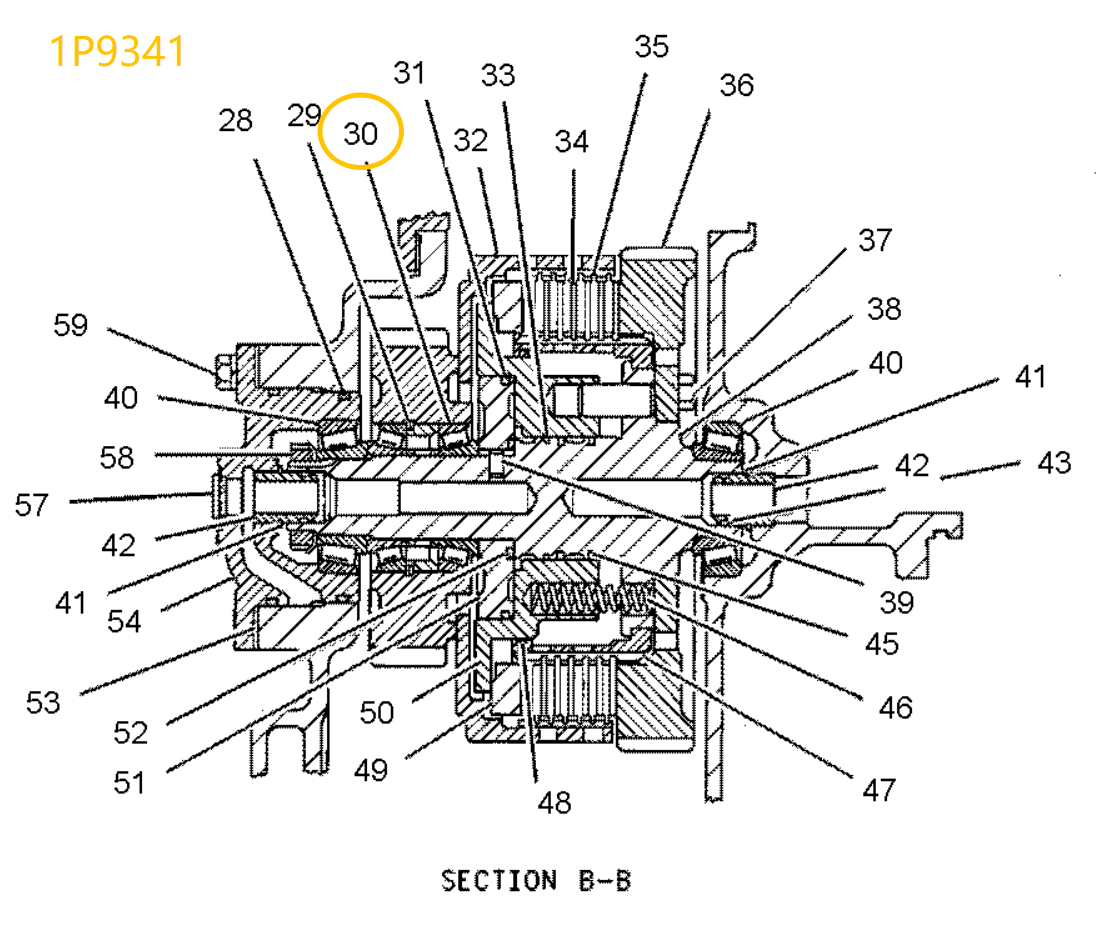

Any other parts for the final drive gearbox system you need pls search from below picture and form list then mark to me we will quote to you
Reluted produts
Pos.
Part No
Qty
Parts name
1
3P-1752 Y
[1]
CASE GP-TRANSMISSION
2
1A-2029
[6]
BOLT (3/8-16X1.125-IN)
5M-2894
[6]
WASHER-HARD (10.2X18.5X2.5-MM THK)
3
3P-0321
[1]
CAGE-BEARING
3P-0322 B
[1]
SHIM PACK (INCLUDES 12-SHIMS)
4
0S-1585
[12]
BOLT (1/2-13X1.5-IN)
3B-4508
[12]
LOCKWASHER
5
7F-8268
[1]
SEAL-O-RING
6
0L-2315
[1]
BOLT (1/2-20X3.5-IN)
7
4S-5824
[1]
RETAINER
8
4H-5440
[2]
COVER
3S-7781
[2]
GASKET
9
8S-9130
[2]
SCREEN-SUCTION
8S-9129
[2]
FILTER-MAGNETIC
10
0S-1594
[8]
BOLT (3/8-16X1-IN)
11
3B-4506
[46]
LOCKWASHER
12
9S-4191
[1]
PLUG (9/16-18-THD)
3J-1907
[1]
SEAL-O-RING
13
3P-0320
[1]
COVER-SUPPORT
14
0S-1588
[31]
BOLT (3/8-16X1.25-IN)
15
1D-4717
[6]
NUT (3/8-16-THD)
16
4T-2069 C
[1]
PLUG
8T-7301 C
[1]
SEAL-FACE
17
2P-9326
[1]
GASKET
18
2P-9325
[1]
COVER-TRANSMISSION CASE
19
3P-6061
[1]
GASKET
20
2N-0822
[1]
PLATE
21
6F-6673
[1]
SEAL-O-RING
22
9S-8009
[2]
PLUG-O-RING
4K-1388
[2]
SEAL-O-RING
23
0S-1591
[1]
BOLT (3/8-16X1.5-IN)
24
4B-4278
[19]
WASHER (10.2X20.5X1.6-MM THK)
25
8T-7286 C
[5]
SEAL-FACE
26
3B-6553
[1]
ELBOW
27
9G-5127 C
[1]
BREATHER AS
28
2H-3934
[2]
SEAL-O-RING
29
3P-6599
[1]
RING-RETAINING
30
1P-9341
[1]
BEARING AS-ROLLER
31
2P-1068
[1]
RING-SEAL
32
3P-0329
[1]
DRUM AS-GEAR (42-TEETH)
33
3P-5728
[1]
RING-SEAL
3P-5859
[1]
SEAL-O-RING
34
3P-0337
[6]
PLATE-CLUTCH
35
3P-0340
[6]
DISC-FRICTION
36
3P-0341
[1]
GEAR-TRANSFER (93-TEETH)
37
4F-8965
[8]
BOLT (7/16-14X1.125-IN)
38
3P-5737
[2]
SHAFT AS-CLUTCH
3P-7009
[1]
PLUG-CUP
1S-9292
[2]
DOWEL
39
8H-9208
[1]
DOWEL
40
8J-6322
[2]
CUP-BEARING
1B-3953
[2]
CONE-BEARING
41
1L-8497
[3]
RING-SNAP
42
9P-4857
[2]
CARRIER-RING
43
8P-0492
[2]
RING-SEAL
44
3K-4897
[2]
PIN-SPRING
45
1T-0234
[2]
RING-METAL SEAL
46
1S-8478
[6]
SPRING
47
3P-5360
[1]
HUB-CLUTCH
48
3P-5726
[1]
RING-SEAL
49
3P-0335
[1]
PLATE-CLUTCH PRESSURE
50
3P-5359
[1]
PISTON-CLUTCH
51
9W-4137 C
[1]
PLATE-REACTION
52
8T-9422 C
[1]
SEAL-FACE
53
3P-0327
[2]
SHIM PACK
54
3P-0326
[2]
CAGE-BEARING
55
6K-8088
[1]
BEARING-ROLLER
56
3P-6159
[1]
LEVER
57
9S-8005
[2]
PLUG (3/4-16-THD)
3K-0360
[2]
SEAL-O-RING
58
2H-3777
[2]
LOCKNUT (1-5/8-18-THD)
5F-8916
[2]
LOCKWASHER
59
1A-2029
[10]
BOLT (3/8-16X1.125-IN)
3B-4506
[10]
LOCKWASHER
60
3P-3426
[1]
LEVER
61
3P-3424
[1]
SHAFT
62
2N-7609
[1]
BEARING-ROLLER
63
3P-0340
[6]
DISC-FRICTION
64
3P-0337
[6]
PLATE-CLUTCH
65
3P-0323
[1]
GEAR (47-TEETH)
66
1P-2636
[3]
CUP-BEARING
1P-2662
[3]
CONE-BEARING
67
4B-9530
[1]
GUIDE-OIL LEVEL GAUGE
68
9S-3582
[1]
CONE-BEARING
69
9S-3581
[1]
CUP-BEARING
70
2R-0098
[1]
SEAL-O-RING
71
3P-5360
[1]
HUB-CLUTCH
72
4F-8965
[8]
BOLT (7/16-14X1.125-IN)
73
9P-4857
[3]
CARRIER-RING
74
1L-8497
[1]
RING-SNAP
75
8J-6322
[2]
CUP-BEARING
1B-3953
[2]
CONE-BEARING
76
1T-0234
[2]
RING-METAL SEAL
77
3P-5728
[1]
RING-SEAL
3P-5859
[1]
SEAL-O-RING
78
1S-8478
[6]
SPRING
79
3P-0342
[1]
GEAR-TRANSFER (93-TEETH)
80
3P-0754
[1]
SHAFT AS-IDLER
81
8M-6521
[1]
DOWEL
82
7S-8576
[1]
BEARING AS-ROLLER
83
3P-0343
[1]
GEAR-IDLER (62-TEETH)
84
5K-4068
[1]
RING-LOCK
85
4H-7859
[1]
LOCKNUT-BEARING
1B-6161
[1]
LOCK
86
9P-4859
[1]
CAGE AS-BEARING
87
9P-6264
[1]
BUSHING
88
2M-4779
[6]
STUD-TAPERLOCK (3/8-16X1.75-IN)
89
3P-0329
[1]
DRUM AS-GEAR (42-TEETH)
90
1P-9646
[1]
RING-LOCK
1P-9645
[1]
SPACER-BEARING
91
3P-0296
[1]
GEAR (73-TEETH)
92
8P-0492
[3]
RING-SEAL
93
8T-8101 C
[3]
SEAL-FACE
94
5H-3252
[1]
SEAL-O-RING
95
5M-7423
[1]
SEAL-O-RING
96
3P-5359
[1]
PISTON-CLUTCH
97
3P-5347
[1]
PLATE-REACTION
98
1P-9341
[1]
BEARING AS-ROLLER
99
3P-6599
[1]
RING-RETAINING
100
2H-3934
[2]
SEAL-O-RING
101
8T-9422 C
[1]
SEAL-FACE
102
2P-1068
[1]
RING-SEAL
103
3P-5726
[1]
RING-SEAL
104
3P-0335
[1]
PLATE-CLUTCH PRESSURE
Factory processing and stocking
Company
ZHZB Mission:We are committed to providing bearing component solutions for all construction machinery and equipment!!!
ZHZB was established in 2004 and has been committed to the development and production of engineering machinery bearings. Our products are widely used in mining equipment, road machinery, metallurgy, wind power generation, excavators and other heavy equipment and have been well received by customers!
Packaging
Delivery：
1.We will send express delivery for less than 45 kg, which is more convenient door-to-door.
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs.
Why choose us?
✬1.Trusted Product
✬2.Advanced Technology
✬3.Reliable Service
✬4.Competitive price
FAQ
Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.
Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q3: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send lpc for quality testing if we have the item you need in stock
Warranty
1. Warranty period:
A 3-month warranty period is provided for the product from the date of arrival. After the customer arrives, the items should be checked against the order list. Contact us and provide any possible data on the item in question.
2. You need to pay the replacement costs in the following situations:
* Wrong orders from customers.
* Any force majeure causes damage.
* Wrong installation.
* Overtime and overload work on parts.
* Lost due to any circumstances.
* Human factors are destroyed.
* Rust and corrosion during storage and operation.
* The warranty has expired.
3. Other
This kind of product is easy to rust, please pack it and store it properly.
