0747306 BRG.;NEEDLE Hitachi parts fit: CX900, CX900-2, CX900HD, EX1200-6, SCX300-C, SCX900, SCX900HD, SCX900HD-C, ZX270, ZX280LC-AMS, ZX280LC-HCME, ZX850-3, ZX850-3F, ZX850LC-3-DH, ZX870H-3, ZX870H-3-HCMC, ZX870H-3F, ZX870R-3, ZX870R-3F
Brand:
ZHZBItem NO.:
0747306Order(MOQ):
1Payment:
T/T ; Western Union; MoneygramProduct Origin:
CHINAShipping Port:
Guangzhou，Qingdao,Shanghai,Ningbo,shenzhenLead Time：
3-7 daysHitachi Excavator Bearing 0747306
| P/N | 0747306 |
Material: |
GCR15 |
| i/d |
mm |
O/D |
mm |
| H |
mm |
Brand： | ZHZB |
|
Precision |
P0 , P6 , P5 |
Structure: |
Needle Roller Bearings |
Product features:
1. Special bearing for excavator Hydraulic pump bearing
2. High-strength high-quality steel
3. Smooth rotation and low noise
4. Compared with other companies' Hydraulic pump bearings, the service life is increased by 50%
Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
A professional manufacturer of Hydraulic pump bearings for excavators. Have many years of manufacturing experience
Product Photos

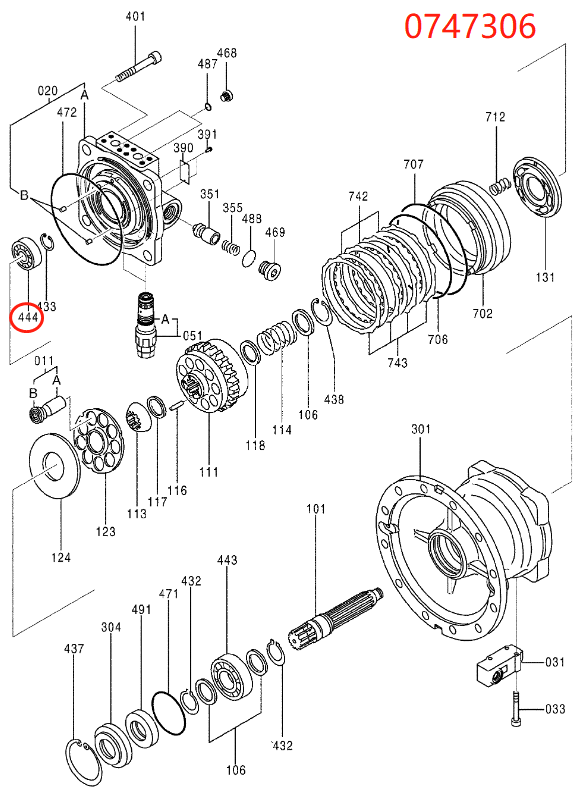

Any other parts for the Hydraulic pump system you need , pls search from below picture and form list then mark to me , we will quote to you.
|
Pos.
Part No
Qty
Parts name
Comments
4637117
[1]
MOTOR;OIL
011.
365401
[1]
PISTON SUB
I 0983304
011.
983304
[1]
PISTON SUB
011A.
+++++++
[9]
PISTON
011B.
+++++++
[9]
SHOE
020.
983301
[1]
CASING SUB
020A.
+++++++
[1]
CASING
020B.
+++++++
[2]
PIN
031.
960201
[1]
VALVE
033.
218824
[3]
BOLT;SOCKET
051.
4654510
[2]
VALVE;RELIEF
051A.
A811030
[1]
O-RING
101.
803003
[1]
SHAFT
106.
365405
[3]
SPACER
111.
803004
[1]
CYLINDER
113.
365407
[1]
BUSHING
114.
365408
[1]
SPRING
116.
365409
[12]
ROD;PUSH
117.
365410
[1]
SPACER
118.
365411
[1]
SPACER
123.
803005
[1]
RETAINER
124.
365413
[1]
PLATE
131.
719603
[1]
PLATE;VALVE
301.
983302
[1]
CASING
304.
365416
[1]
COVER
351.
803007
[2]
PLUNGER
355.
803008
[2]
SPRING
390.
+++++++
[1]
PLATE
I 0817703
390.
+++++++
[1]
NAME-PLATE
391.
625509
[2]
PIN
401.
365417
[4]
BOLT;SOCKET
432.
991345
[2]
RING;RETAINING
433.
747305
[1]
RING;RETAINING
437.
973069
[1]
RING;RETAINING
438.
931346
[1]
RING;RETAINING
443.
983303
[1]
BRG.;ROL.
444.
747306
[1]
BRG.;NEEDLE
468.
629404
[2]
PLUG
469.
803009
[2]
PLUG
471.
A811110
[1]
O-RING
472.
496103
[1]
O-RING
I 0983305
472.
983305
[1]
O-RING
487.
957366
[2]
O-RING
488.
984614
[2]
O-RING
491.
251914
[1]
SEAL;OIL
702.
803010
[1]
PISTON
706.
365326
[1]
O-RING
707.
365427
[1]
O-RING
712.
747307
[16]
SPRING;BRAKE
742.
365428
[3]
PLATE
743.
365429
[4]
PLATE
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
Company
ZHZB Mission:We are committed to providing bearing component solutions for all construction machinery and equipment!!!
ZHZB was established in 2004 and has been committed to the development and production of engineering machinery bearings. Our products are widely used in mining equipment, road machinery, metallurgy, wind power generation, excavators and other heavy equipment and have been well received by customers!
Packaging
Delivery：
1.We will send express delivery for less than 45 kg, which is more convenient door-to-door.
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs.
Why choose us?
✬1.Trusted Product
✬2.Advanced Technology
✬3.Reliable Service
✬4.Competitive price
FAQ
Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.
Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q3: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send lpc for quality testing if we have the item you need in stock
Contact Us
Guangzhou hongjue bearing machinery equipment co., ltd.
Phone: 008616620344007
Whatsapp : 008616620344007
Email: zhzbbearing@163.com
Previous:
HITACHI Hydraulic pump bearing 4366256Next:
Hitachi Excavator Final drive bearing 4224213 for ZX800If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
