Hyundai Wheel Excavator Bearing ZGAQ-03228 suitable for:R210W-9.
Brand:
ZHZBItem NO.:
ZGAQ-01307Payment:
T/T ; Western Union; MoneygramWeight：
0.4KGProduct Origin:
CHINAShipping Port:
Guangzhou,Qingdao,Shanghai,Ningbo,ShenzhenLead Time：
1-2 Work dayHyundai Excavator Bearing ZGAQ-01307
|
P/N |
ZGAQ-01307 |
Material: |
GCR15 |
|
i/d |
mm |
O/D |
mm |
|
H |
mm |
Brand： |
ZHZB |
|
Precision |
P0 , P6 ,P5 |
Structure: |
Cylindrical Roller Bearing |
| Minimum order quantity | Negotiable | market price | Negotiable |
Product feature:
1. Made of GCr15 bearing steel, high hardness, wear‑resistant and impact‑resistant, ideal for heavy‑duty working condition of wheel excavator front axle.
2. Cylindrical roller structure with strong radial load capacity, withstand alternating load of planetary gear position.
3. P0, P6, P5 multiple precision grades optional, meet repair replacement and high‑precision assembly demands.
4. Direct interchange with original parts, install without modification.
5. Good anti‑fatigue performance, smooth running, reduce front axle noise and gear wear, extend axle spare parts service life.
6. Light weight, easy for stock and shipment.
Our advantae:
1. Specialized in construction machinery bearings, full range for Hyundai Komatsu Caterpillar etc.
2. Strict quality control, raw material inspection and finished‑product testing for stable performance
3. Sufficient stock for common part numbers, fast delivery to shorten lead time
4. Support multiple precision grades, customized supply available
5. Rich export experience, flexible logistics solutions
6. Professional technical support, quick response for model selection and after‑sales service
Production Process:

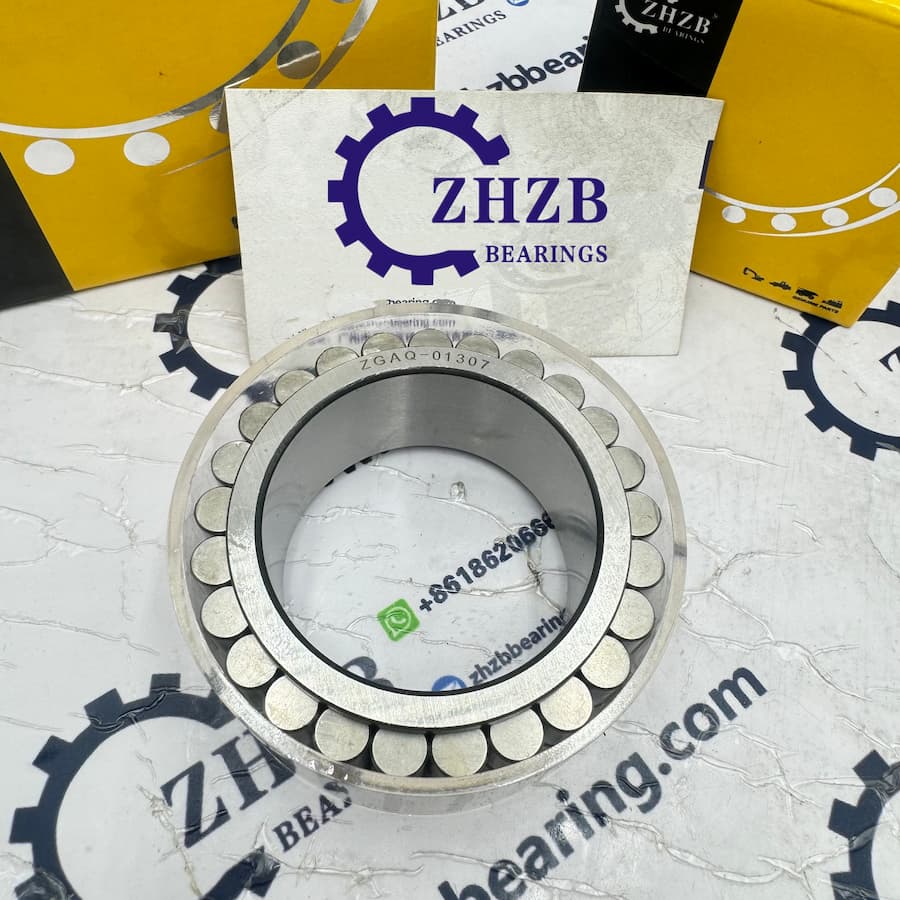

Product Photos

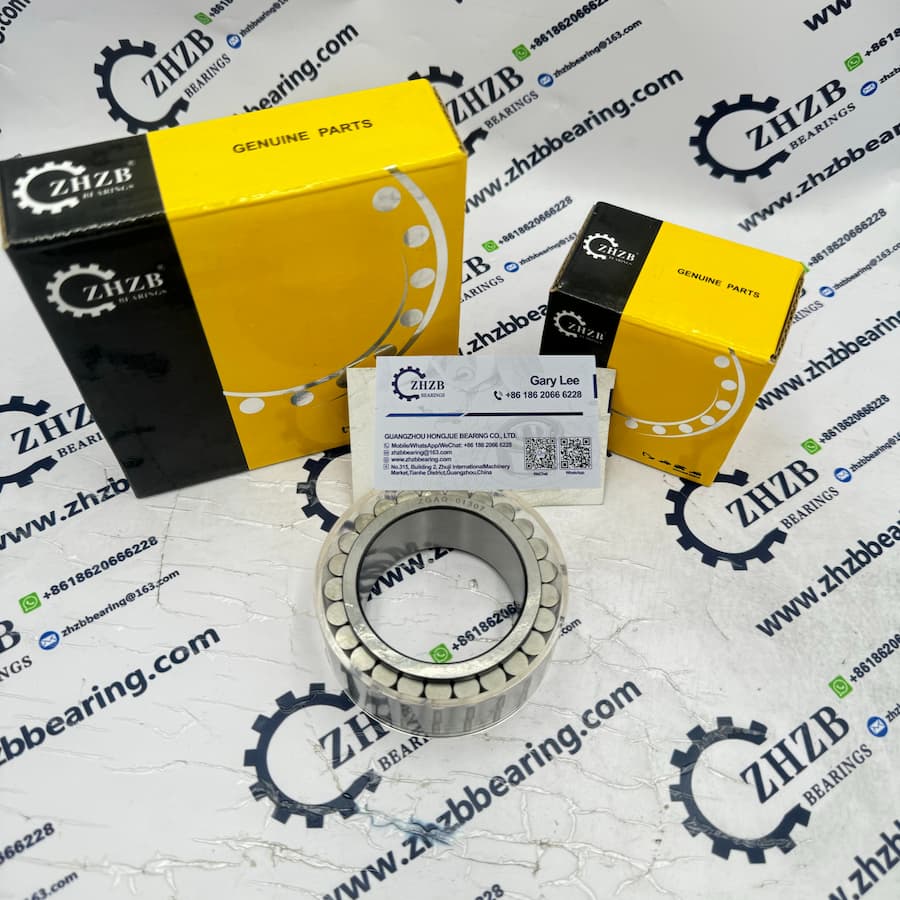

GCr15 steel, high hardness and wear resistance

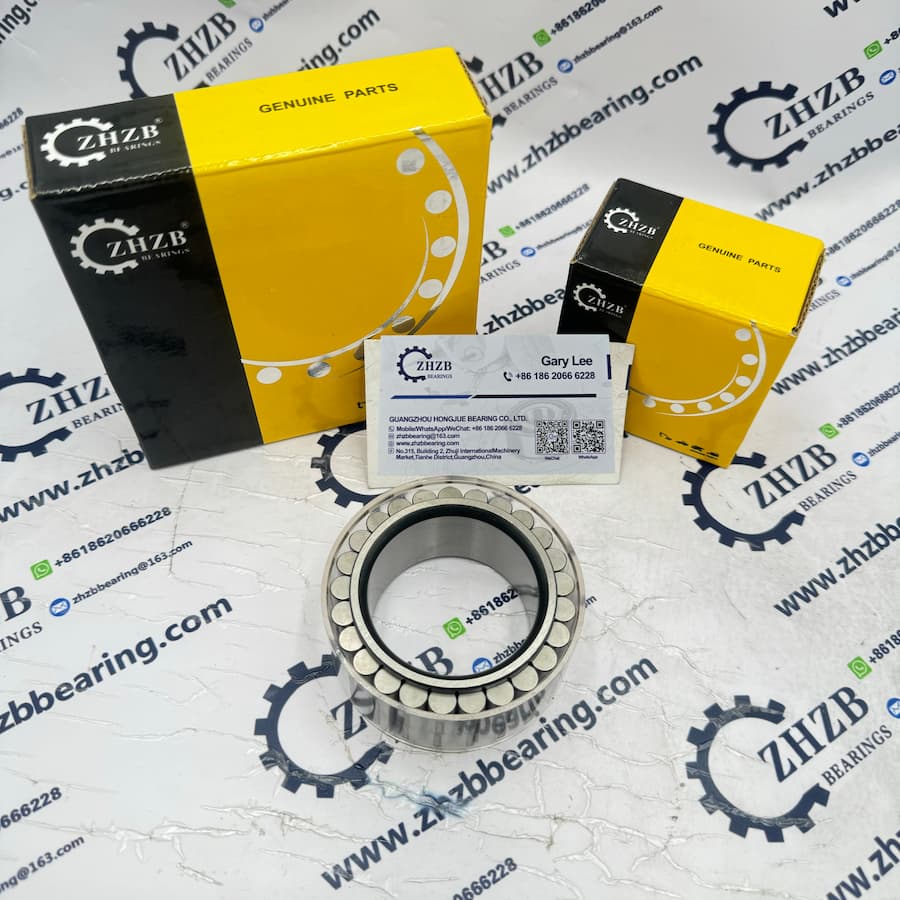

Cylindrical roller bearing, resist alternating load, keep front axle stable.

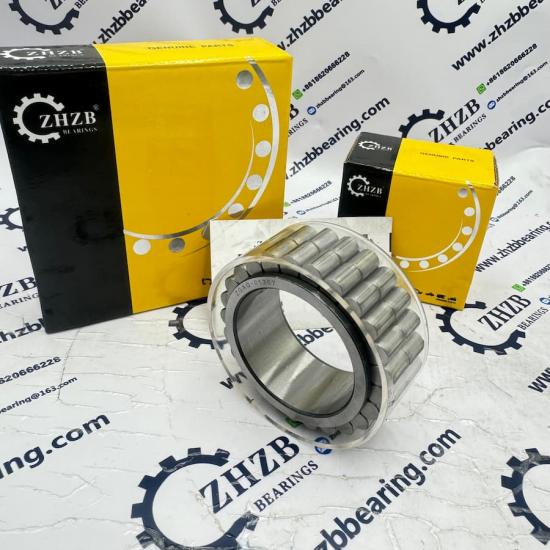

P0/P6/P5 precision for various working conditions
Any other parts for the final drive gearbox system you need pls search from below picture and form list then mark to me we will quote to you
Reluted Produts
Pos.
Part No
Qty
Parts name
*.
@
[1]
AXLE-FRONT
10
ZGAQ-01266
[2]
SEAL-SHAFT
30
ZGAQ-02205
[4]
BEARING-TAPER ROLLER
60
ZGAQ-02206
[2]
BUSHING-SPACER
80
ZGAQ-02207
[2]
HUB
90
ZGAQ-01269
[2]
O-RING
120
ZGAQ-02208
[2]
CARRIER-DISC
130
ZGAQ-02209
[4]
O-RING
135
ZGAQ-02210
[2]
O-RING
160
ZGAQ-02211
[2]
GEAR-RING
200
ZGAQ-02212
[2]
PISTON
205
ZGAQ-02213
[8]
PIN-CYLIDRICAL
210
ZGAQ-01287
[2]
U-RING
214
ZGAQ-02214
[2]
RING-SUPPORT
230
ZGAQ-02215
[2]
U-RING
232
ZGAQ-02216
[2]
RING-SUPPORT
238
ZGAQ-01292
[16]
SPRING-COMPRESSURE
239
ZGAQ-02217
[16]
SPRING-COMPRESSURE
256
ZGAQ-02219
[16]
SCREW-HEX
258
ZGAQ-01291
[16]
SLEEVE-SPRING
270
ZGAQ-02220
[12]
DISC-O/CLUTCH
275
ZGAQ-02330
[10]
DISC-I/CLUTCH(2.5)
280
ZGAQ-02331
[2]
DISC-I/CLUTCH(2.0)
280
ZGAQ-02332
[2]
DISC-I/CLUTCH(3.0)
280
ZGAQ-02330
[2]
DISC-I/CLUTCH(2.5)
320
ZGAQ-01311
[2]
WASHER-THRUST(1.5)
320
ZGAQ-01312
[2]
WASHER-THRUST(1.7)
320
ZGAQ-01313
[2]
WASHER-THRUST(2.0)
320
ZGAQ-01314
[2]
WASHER-THRUST(2.2)
320
ZGAQ-01315
[2]
WASHER-THRUST(2.5)
320
ZGAQ-01316
[2]
WASHER-THRUST(2.7)
320
ZGAQ-01317
[2]
WASHER-THRUST(3.0)
390
ZGAQ-02224
[2]
CARRIER-PLANET
410
ZGAQ-02225
[1]
CARRIER-PLANET
420
ZGAQ-02226
[3]
GEAR-PLANET
430
ZGAQ-01307
[3]
BEARING-ROLLER
440
ZGAQ-01308
[6]
WASHER
450
ZGAQ-01309
[6]
RING-SNAP
460
ZGAQ-01310
[3]
RING-RETAINING
500
@
[2]
PLUG-SCREW
510
ZGAQ-02191
[2]
PLUG-SCREW
520
ZGAQ-02192
[2]
O-RING
550
ZGAQ-01322
[4]
SCREW-CAP
540
ZGAQ-02228
[20]
BOLT-WHEEL
600
ZGAQ-03164
[20]
NUT-WHEEL
630
ZGAQ-02227
[2]
SCREW-CAP
Factory processing and inventory
Professional charging station logistics | Full range of specifications, rapid response
We support export and accept customization. Global customers are welcome!
Bearing inspection
We place great emphasis on quality control and have established a comprehensive quality inspection system. From raw material warehousing to delivery, every purchase and every bearing undergoes rigorous inspection and testing to ensure that we provide our customers with stable, reliable, and standard-compliant products.
Participating in the 2024 Shanghai bauma Exhibition
At ZHZB, we operate with a comprehensive quality control system at its core. From raw material inspection upon arrival to final product delivery,
every sensor undergoes 100% inspection and accuracy verification, strictly adhering to ISO 9001 and other international standards.
This ensures that we provide reliable bearing components for high-end equipment in industries such as mining, road construction, and wind power.
Delivery：
1.We will send express delivery for less than 45 kg, which is more convenient door-to-door
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs
Why choose us?
Trusted Product: Durable bearing steel materialFAQ
Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.
Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q3: What equipment is ZGAQ‑01307 bearing used for?
A: It is applied to planetary gear of front axle output group for Hyundai wheel excavator, fits R170W‑7, R170W‑9, R200W‑9, R210‑9S.
Q4: How about its durability under tough working conditions?
A: Made of GCr15 bearing steel, wear‑resistant and impact‑resistant. It can bear alternating heavy load of planetary gear for high‑intensity wheel excavator operation.
Q5: How to choose precision grade?
A: P0 for general repair; P6 and P5 for high‑precision assembly. You can select according to your assembly requirement.
Q6: Do I need modification during installation?
A: Manufactured to OEM specification, fully interchangeable. Direct installation without secondary machining.
Q7: What is the lead time? Can I mix order with other parts?
A: Most items ship from stock. Mixed order with other excavator bearings is supported to cut your purchasing cost.
Q8: Do you inspect goods before shipment?
A: Visual and specification inspection before delivery to reduce defective risk. Technical consultation is also available.
Warranty
1. Warranty period:A 3-month warranty period is provided for the product from the date of arrival. After the customer arrives, the items should be checked against the order list. Contact us and provide any possible data on the item in question.
2. You need to pay the replacement costs in the following situations:
* Wrong orders from customers.
* Any force majeure causes damage.
* Wrong installation.
* Overtime and overload work on parts.
* Lost due to any circumstances.
* Human factors are destroyed.
* Rust and corrosion during storage and operation.
* The warranty has expired.
3. Other
This kind of product is easy to rust, please pack it and store it properly.
