Caterpillar Bulldozer Bearing Assy 1M-1994 Suitable:D4D,D4E,D8H.
Brand:
ZHZBItem NO.:
1M-1994Payment:
T/T ; Western Union; MoneygramWeight：
2.5KGProduct Origin:
CHINAShipping Port:
Guangzhou,Qingdao,Shanghai,Ningbo,ShenzhenLead Time：
1-2 Work dayCaterpillar Bulldozer Bearing 1M-1994
|
P/N |
1M-1994 |
Material: |
GCR15 |
|
i/d |
mm |
O/D |
mm |
|
H |
mm |
Brand： |
ZHZB |
|
Precision |
P0 , P6 ,P5 |
Structure: |
Tapered Roller Bearing |
| Minimum order quantity | Negotiable | market price | Negotiable |
Product feature:
✅1M‑1994 direct replacement for Cat D4D D4E D8H bulldozer
✅Tapered roller for combined radial & axial heavy load
✅Bearing steel, wear‑resistant & anti‑fatigue
✅P0/P6/P5 multiple precision grades
✅Smooth operation, less downtime
✅Easy installation, lower maintenance cost
Our advantae:
✅Professional supplier for construction machinery bearings
✅Strict quality control with factory inspection
✅Support multiple precision grade customization
✅Fast lead time for in‑stock items
✅Wide parts range for Caterpillar, Komatsu and other brands
✅One‑stop foreign trade service for quotation, packing & shipment
✅Timely after‑sales support for part selection
Production Process:
YOUTUBE

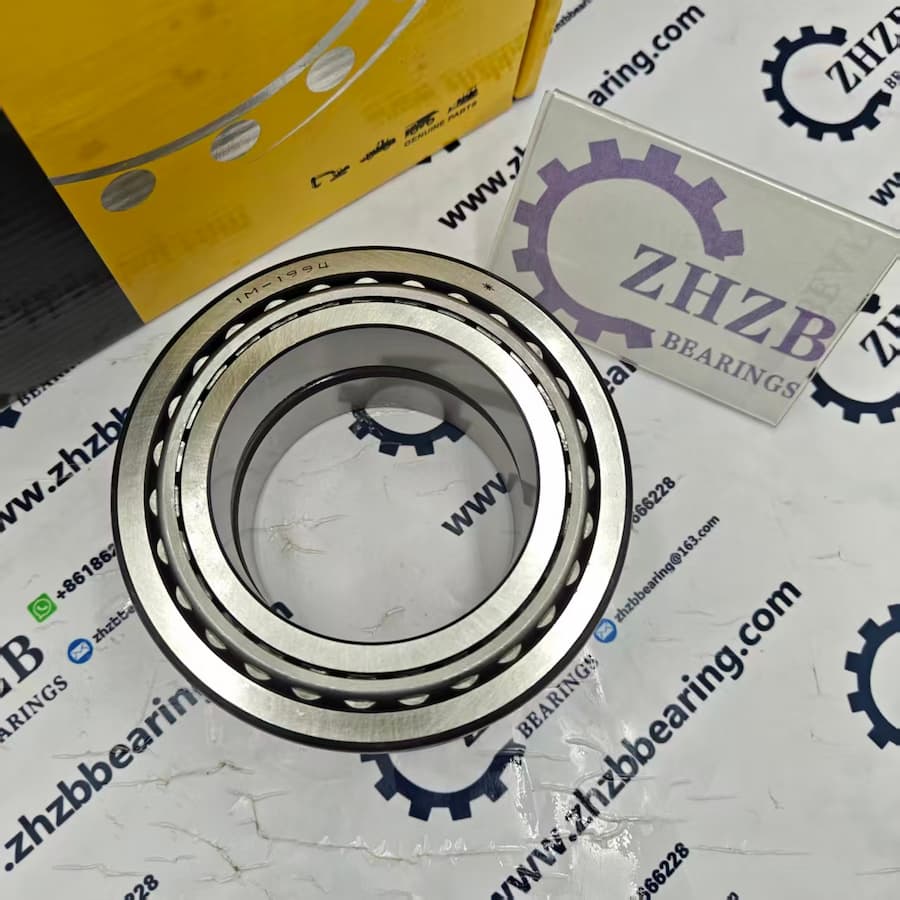

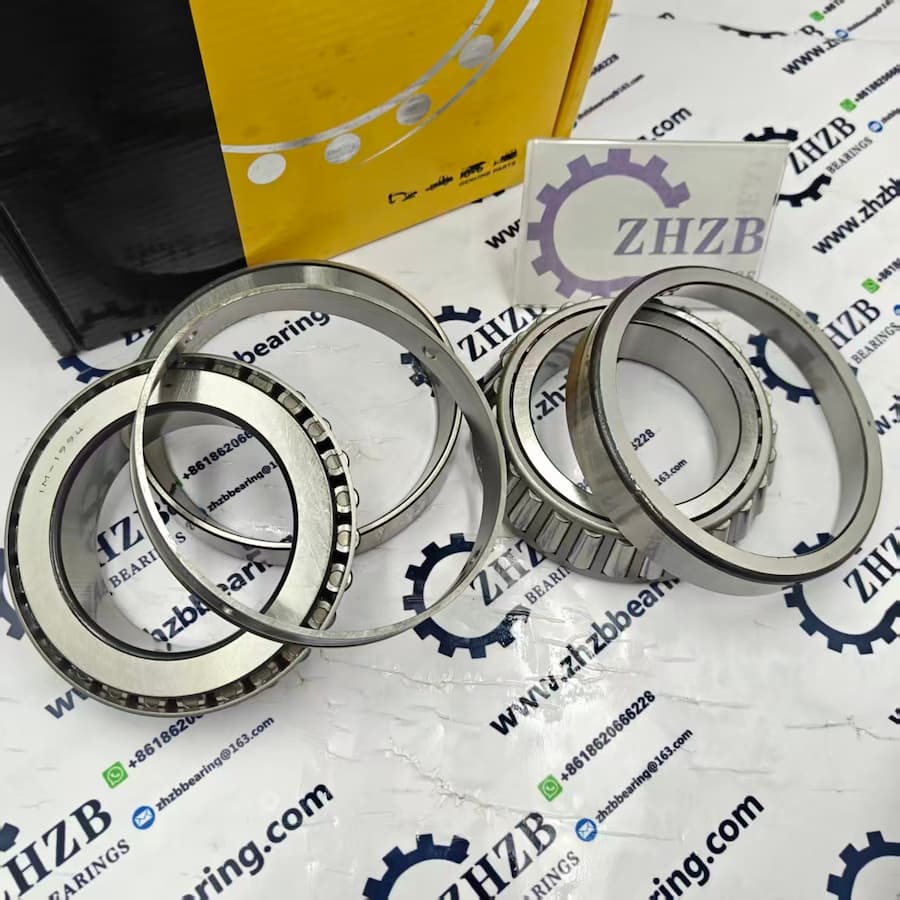

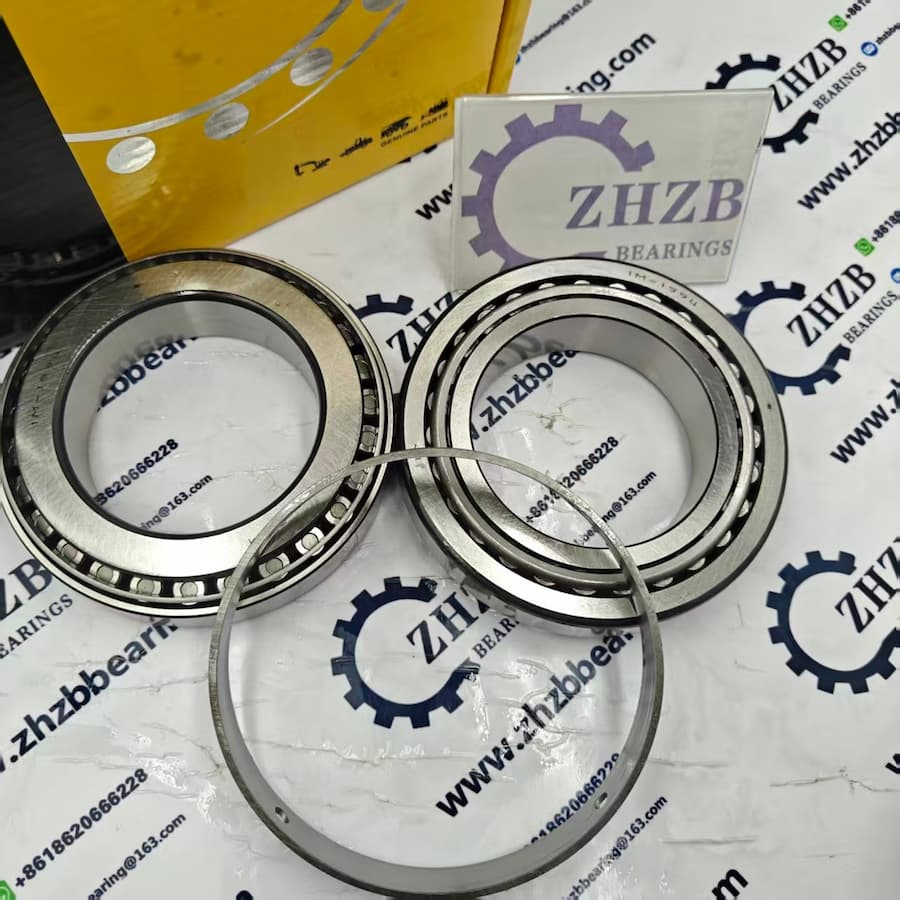

Product Photos
GCr15 steel, high hardness and wear resistance
Tapered roller bearing, resist alternating load, keep front axle stable.

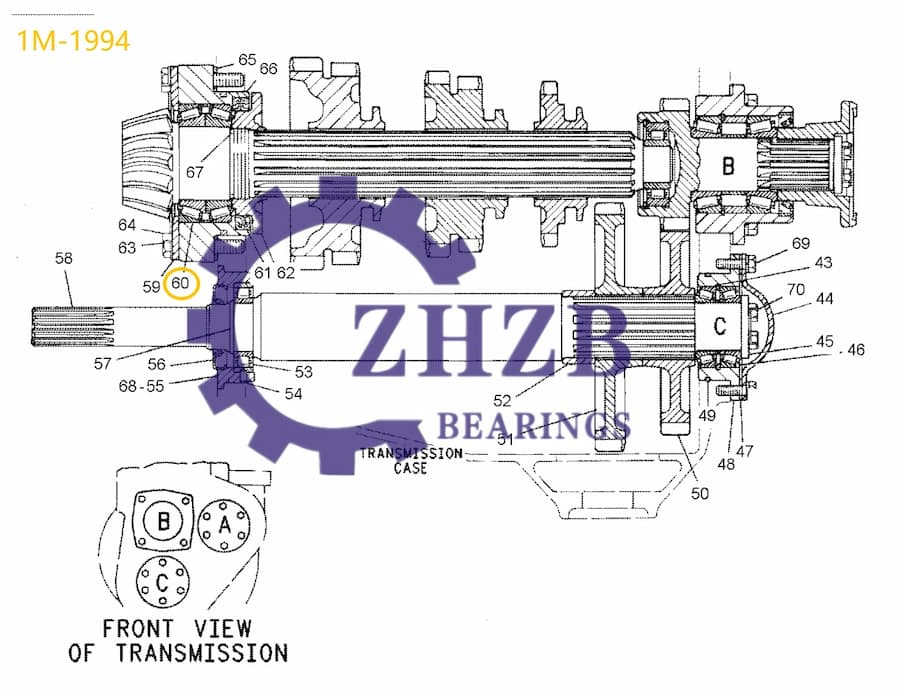

Any other parts for the final drive gearbox system you need pls search from below picture and form list then mark to me we will quote to you
Reluted Produts
Pos.
Part No
Qty
Parts name
1
9H-6932
1
NUT
2
9H-6933
1
RING-SNAP
3
7M-1154
1
BEARING
4
2D-6420
1
RACE-ROLLER BEARING
5
2M-0138
1
DOWEL
6
2A-3746
2
PLUG-CUP
7
4K-5054
1
GEAR (20 TEETH)
8
9H-6937
2
SPACER
9
6Y-0711
1
GEAR COUNTERSHAFT (25 TEETH)
10
6Y-0709
1
GEAR COUNTERSHAFT (28 TEETH)
11
6Y-0713
1
GEAR (32 & 30 TEETH)
12
1M-1663
1
COLLAR AS RETAINING
1B-4203
2
NUT-FULL (3/8-24-THD)
0S-2415
2
LOCKNUT
13
1M-1655
1
RING-SNAP
14
4K-5098
1
SHAFT TRANSMISSION
15
6Y-0710
1
GEAR (38 TEETH)
16
4K-5080
1
BEARING AS ROLLER
17
1H-8128
1
SEAL-O-RING
18
4K-5106
1
CAGE
19
0S-1588
6
BOLT (3/8-16X1.25-IN)
5M-2894
6
WASHER-HARD (10.2X18.5X2.5-MM THK)
20
4F-3190
1
WASHER RETAINING
21
6F-7030
4
BOLT (3/8-24X1-IN)
0T-0329
2
LOCKNUT
22
5K-3569
1
COVER
5K-2059
1
GASKET
23
4K-5078
1
RING-LOCK
24
0S-1595
4
BOLT (1/2-13X1.25-IN)
5P-8245
4
WASHER-HARD (13.5X25.5X3-MM THK)
25
3J-0375
1
SEAL-LIP TYPE
26
4K-5086
1
YOKE
27
2K-1722
1
WASHER RETAINING
28
4F-7389
1
SEAL-O-RING
29
4K-5039
1
CAGE-BEARING
30
4K-5246
1
BEARING AS ROLLER
31
1A-1452
1
GASKET
32
5K-1276
1
RING-LOCK
33
4K-5074
1
PINION (22 TEETH)
34
3B-3985
1
RACE-SPECIAL ROLLER BEARING
2J-6262
1
BEARING
35
0L-2351
1
RING-RETAINING
36
6Y-0715
1
GEAR (29 T)
37
1K-7974
1
GEAR (31 & 27 T)
38
1M-1698
1
GEAR-SLIDING (36 & 38 T)
39
3V-1025
1
SHAFT-PINION
40
4S-5898
1
SEAL-O-RING
41
2S-2182
1
SEAL-O-RING
42
4K-5078
1
RING-LOCK
43
5K-3569
1
COVER
44
4F-3190
1
WASHER RETAINING
45
4K-5080
1
BEARING AS ROLLER
46
5K-2059
1
GASKET
47
4K-5106
1
CAGE
48
1H-8128
1
SEAL-O-RING
49
6Y-0714
1
GEAR (38 TEETH)
50
4K-5109
1
GEAR-REVERSE (45 TEETH)
51
6K-0912
1
SPACER
52
4B-8108
1
BEARING-INNER
1J-8694
1
RACE-BEARING OUTER
53
1A-9759
2
PIN
54
5V-2999
1
CAGE
55
6V-0955
1
SEAL-LIP TYPE
56
4B-1127
1
RING-SNAP
57
5V-3158
1
SHAFT
58
4K-5081
1
RETAINER
59
1M-1994
1
BEARING AS ROLLER
60
5Y-0143
1
SEAL
61
5V-8541
1
NUT
62
1A-5822
7
BOLT (1/2-13X2.75-IN)
63
4K-5420
2
LOCK
64
4K-5082
2
SHIM
65
5V-8540
1
CAGE-BEARING
66
8M-4395
1
SEAL-O-RING
67
7M-7260
1
GASKET-LIQUID (8-OZ CAN)
68
0S-1588
6
BOLT (3/8-16X1.25-IN)
5M-2894
6
WASHER-HARD (10.2X18.5X2.5-MM THK)
69
6F-7030
2
BOLT (3/8-24X1-IN)
Factory processing and inventory
Professional charging station logistics | Full range of specifications, rapid response
We support export and accept customization. Global customers are welcome!
Bearing inspection
We place great emphasis on quality control and have established a comprehensive quality inspection system. From raw material warehousing to delivery, every purchase and every bearing undergoes rigorous inspection and testing to ensure that we provide our customers with stable, reliable, and standard-compliant products.
Participating in the 2024 Shanghai bauma Exhibition
At ZHZB, we operate with a comprehensive quality control system at its core. From raw material inspection upon arrival to final product delivery,
every sensor undergoes 100% inspection and accuracy verification, strictly adhering to ISO 9001 and other international standards.
This ensures that we provide reliable bearing components for high-end equipment in industries such as mining, road construction, and wind power.
Delivery：
1.We will send express delivery for less than 45 kg, which is more convenient door-to-door
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs
Why choose us?
Trusted Product: Durable bearing steel materialFAQ
Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.
Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q3: Which machines does bearing part number 1M‑1994 fit?
A: Fits Caterpillar bulldozer D4D, D4E, D8H, used for bulldozer transmission position.
Q4: What is the bearing type?
A: Tapered roller bearing, bears combined radial and axial loads.
Q5: What precision grades are available?
A: P0, P6, P5 for different working conditions.
Q6: What is the bearing material?
A: Bearing steel, good wear‑resistance and anti‑fatigue for heavy‑duty site work.
Q7: What is the weight?
A: 2.5kg.
Q8: Can it directly replace original spare part?
A: Same specification, direct replacement for maintenance.
Q9: Do you support custom precision grade?
A: Yes, P0/P6/P5 can be ordered as request.
Q10: What is your lead time?
A: Fast shipment for stock items; production lead time for custom orders.
Q11: Why does noise happen after installation?
A: Please check installation clearance, assembly process and matching components.
Q12: Can you supply other Caterpillar machinery bearings?
A: Yes, wide range bearings for Cat bulldozers and excavators available
Warranty
1. Warranty period:A 3-month warranty period is provided for the product from the date of arrival. After the customer arrives, the items should be checked against the order list. Contact us and provide any possible data on the item in question.
2. You need to pay the replacement costs in the following situations:
* Wrong orders from customers.
* Any force majeure causes damage.
* Wrong installation.
* Overtime and overload work on parts.
* Lost due to any circumstances.
* Human factors are destroyed.
* Rust and corrosion during storage and operation.
* The warranty has expired.
3. Other
This kind of product is easy to rust, please pack it and store it properly.
