2M5685 Needle Bearing Fit Caterpillar 769 773B 775D Dump Truck Transmission Replacement Bearing ZHZB

Caterpillar Dump Truck Transmission Bearing 2M5685 suitable:769, 773B, 775D.

Brand:
ZHZB
Item NO.:
2M5685
Payment:
T/T ; Western Union; Moneygram
Product Origin:
CHINA
Shipping Port:
Guangzhou,Qingdao,Shanghai,Ningbo,Shenzhen
Lead Time：
1-2 Work day

Product Detail

Caterpillar Dump Truck Bearing 2M5685

Specification

P/N	2M5685	Material:	GCR15
i/d	mm	O/D	mm
H	mm	Brand：	ZHZB
Precision	P0 , P6 , P5	Structure:	Needle Bearing
Minimum order quantity	Negotiable	market price	Negotiable

Product feature:

Made of GCr15 bearing steel, durable and wear-resistant
Available in P0, P6, P5 multiple precision grades
Needle roller structure, high load capacity & smooth operation
Perfect fit for CAT 769,773B,775D dump truck transmission
OEM replacement size, easy installation and stable performance

Our advantae:

ZHZB specializes in replacement bearings for construction machinery, focusing on mining and heavy-duty trucks.
Full product line compatible with mainstream heavy brands: Caterpillar, Volvo, Komatsu, Hyundai, etc.
All bearings made of GCr15 bearing steel, optional P0/P6/P5 precision grades.
Mass ready stock for excavators, dump trucks, motor graders and other engineering equipment.
Strict full inspection before delivery, OEM equivalent dimension with high interchangeability.

Production Process:

ZHZB Bearing 2M5685

TOUTUBE

Product Photos

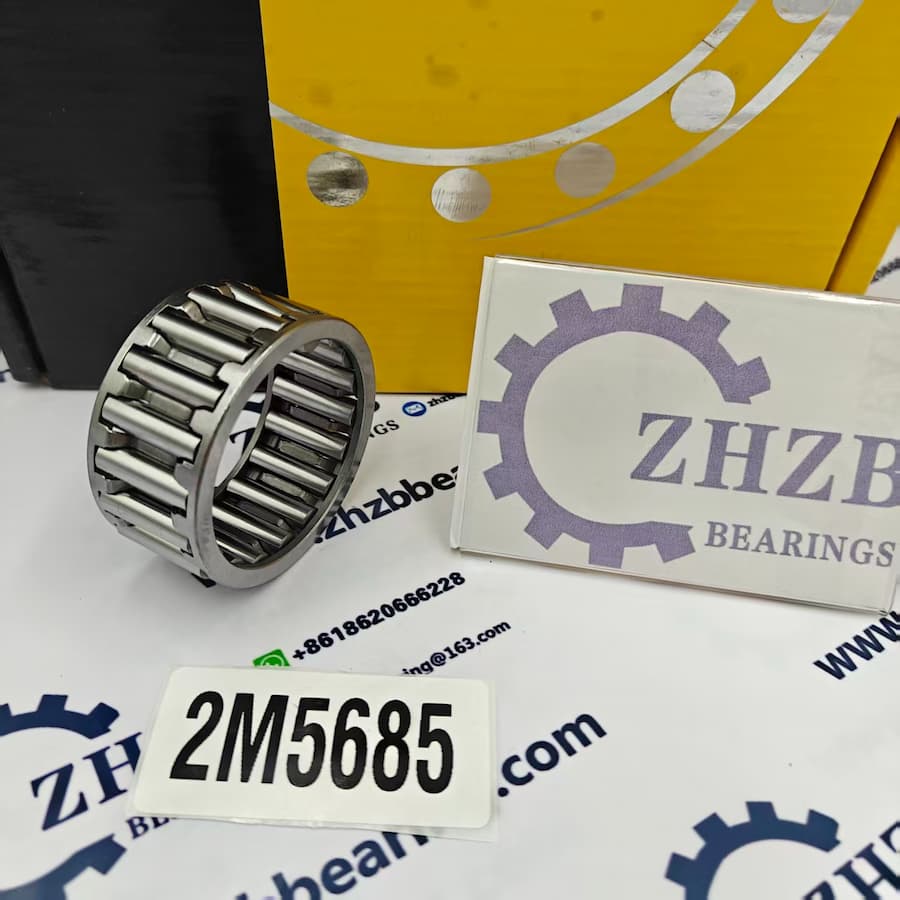

Bearing Supplier 2M5685

Multiple precision grades for diverse conditions

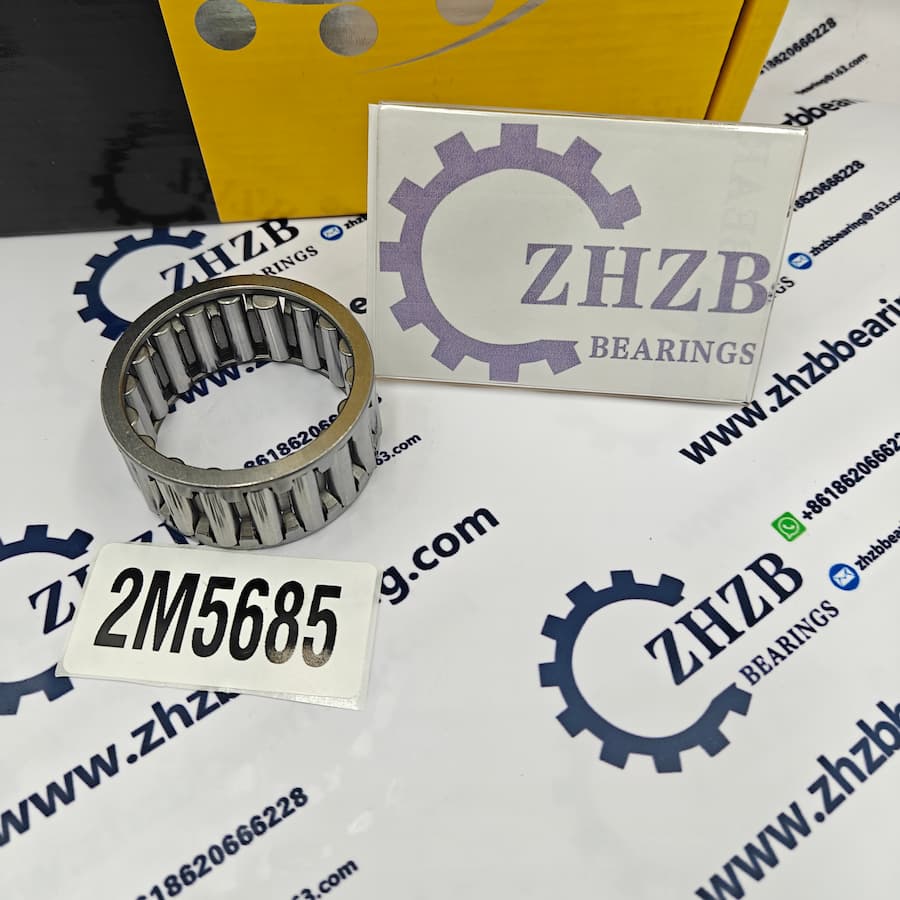

Caterpillar 2M5685

Manufactured in accordance with OEM standards, direct plug-and-play replacement without modification

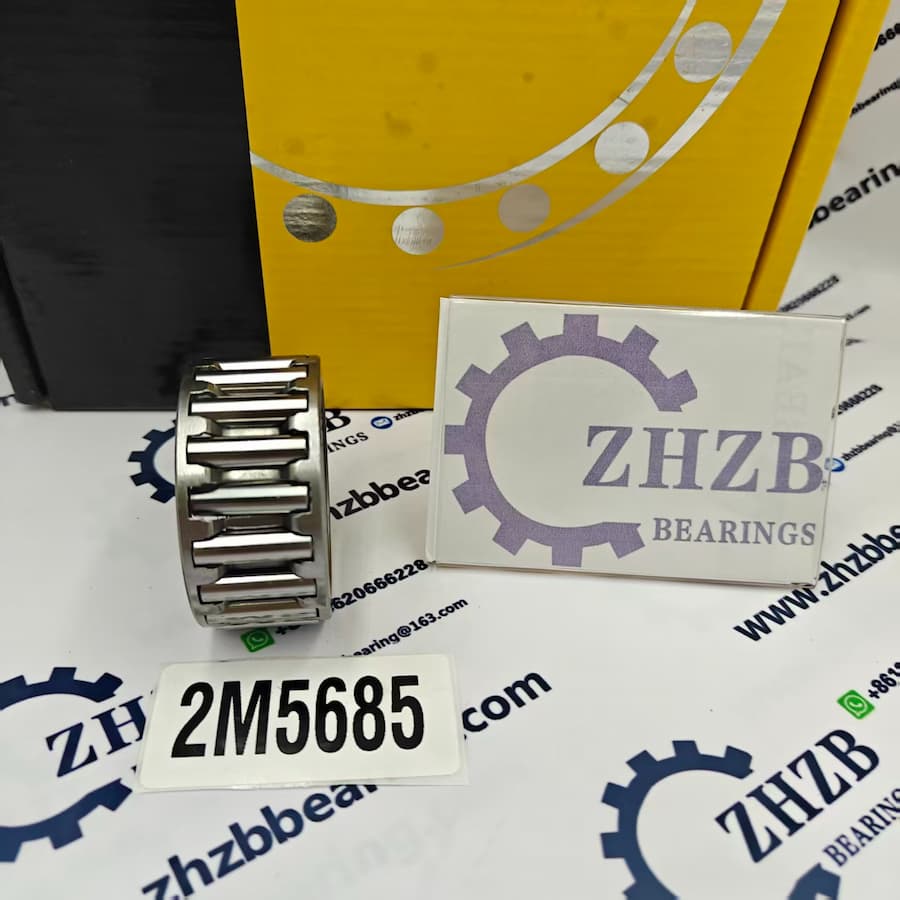

Dump Truck Bearing 2M5685

Constructed with high-purity bearing steel, it is impact-resistant and fatigue-resistant for heavy bumpy working conditions.

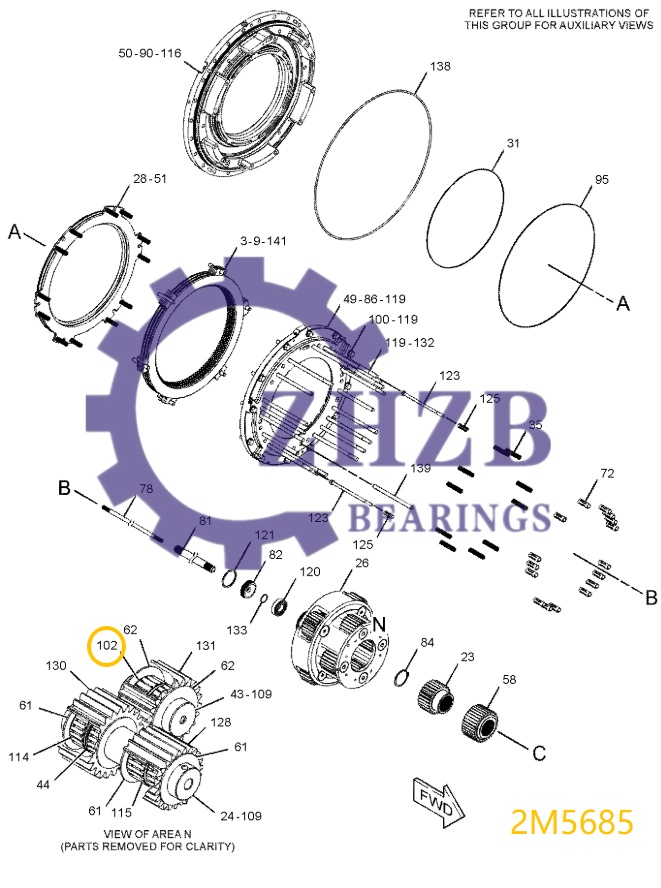

Any other parts for the final drive gearbox system you need pls search from below picture and form list then mark to me we will quote to you

Bearing Manufacture 2M5685
Reluted Produts

Pos.	Part No	Qty	Parts name
1	1M-4169	1	RING-METAL SEAL
2	1P-4110	11	DISC-FRICTION
3	1S-3736	3	DISC-FRICTION
4	1S-5623	4	PLATE-LOCK
5	2H-6488	14	BOLT (1/2-13X5-IN)
6	368-0297	8	PLATE-CLUTCH
7	2S-4900	3	SHAFT AS (EACH INCLUDES)
	2S-4899	1	SHAFT PLANETARY
	3S-0036	1	PLUG-CORE
8	2S-4993	1	SLINGER-OIL
9	3P-4057	3	PLATE-CLUTCH
10	3P-4265	1	PISTON-CLUTCH
11	3P-4269	1	PISTON BALANCE
12	3P-4270	5	PLATE-LOCK
13	3P-8151	1	MANIFOLD
14	3P-8152	1	MANIFOLD AS
	1P-0604	1	PLUG-CUP
	6B-6863	1	PIN-SPRING
	6P-7706	1	CARRIER-RING
	9M-2001	1	DOWEL
15	3P-8154	1	HOUSING AS CLUTCH
	2D-6642	6	BALL
16	3P-8158	1	HOUSING AS CLUTCH
	2L-3650	3	PIN-SPRING
	7M-8480	2	DOWEL
17	3P-8160	5	PLATE-CLUTCH
18	3P-8161	1	HUB-CLUTCH
19	3P-8164	1	HUB-CLUTCH
20	3P-8167	1	GEAR-RING (89-TEETH)
21	3P-8169	1	RING-RETAINING
22	3P-8170	1	CARRIER PLANETARY
23	3P-8173	1	GEAR-SUN (27-TEETH)
24	3P-8175	4	SHAFT PLANETARY
25	3P-8178	1	GEAR-RING (95-TEETH)
26	3P-8179	1	CARRIER PLANETARY
27	3P-8215	1	CARRIER AS
	2D-6642	6	BALL
	8B-1312	2	DOWEL
28	3P-8217	1	PISTON-CLUTCH
29	436-9218	1	GEAR AS
	3P-8218	1	RING-LOCK
	9M-2001	1	DOWEL
30	3S-0044	4	PLATE-CLUTCH
31	3S-0142	1	RING-SEAL
32	3S-2619	1	RING-RETAINING
33	3S-7981	4	DISC-FRICTION
34	3T-7417	1	PISTON-CLUTCH
35	4M-5016	10	SPRING
36	4M-9592	20	SPRING
37	4S-5811	1	PLUG
38	5B-1952	5	SPRING
39	6F-0155	2	RING-METAL SEAL
40	6H-7201	1	RING-METAL SEAL
41	6P-1037	1	RING-RETAINING
42	486-9750	1	CAGE AS
42A.	486-9752	1	BEARING-SLEEVE
	6B-6863	1	PIN-SPRING
	6P-7706	1	CARRIER-RING
	9M-2001	2	DOWEL
43	6P-9269	4	SHAFT AS PLANETARY (EACH INCLUDES)
	2A-3746	1	PLUG-CUP
44	6P-9565	4	SPACER (1.74X2.04X0.123-IN THK)
45	6P-9607	1	PISTON AS
	2L-3650	2	PIN-SPRING
46	6V-1720	1	PLATE-SERIAL NUMBER (TRANSMISSION)
47	6Y-8675	1	HOUSING AS
	7M-8480	2	DOWEL
48	7G-8905	1	HOUSING AS
	5B-9318	2	BALL
	7M-8480	2	DOWEL
49	7G-8906	1	PLATE AS
	4B-9880	3	BALL
50	7G-8907	1	HOUSING AS CLUTCH
	183-3407	1	PLUG AS
	9S-8004	1	PLUG (9/16-18-THD)
	214-7568	1	SEAL-O-RING
	1A-2223	2	DOWEL
	126-7260	2	PLUG
51	7M-5813	12	SPRING
52	7S-4485	1	PLATE AS CENTER
	5B-9318	2	BALL
	7M-8480	4	DOWEL
53	7S-4497	1	GEAR-SUN (55-TEETH)
54	7S-4523	1	GEAR-RING (96-TEETH)
55	7S-4543	2	PISTON-CLUTCH
56	7S-8580	1	CARRIER PLANETARY
57	7S-8631	4	SHAFT AS (EACH INCLUDES)
	3S-0036	1	PLUG-CORE
58	356-5130	1	GEAR-SUN (35-TEETH)
59	8E-8299	12	DISC-THRUST
60	8E-8304	14	DISC-THRUST
61	8E-8308	16	DISC-THRUST
62	8E-8311	8	DISC-THRUST
63	8E-9565	1	GEAR AS
	8E-9564	1	GEAR-SUN (36-TEETH)
	8S-9182	1	RING-LOCK
	8S-9183	1	HUB-CLUTCH
64	8P-0523	1	GEAR-RING (81-TEETH)
65	8P-1896	6	SHAFT AS PLANETARY (EACH INCLUDES)
	2A-3746	1	PLUG-CUP
66	8P-3512	1	PISTON-CLUTCH
67	8P-3514	1	HOUSING AS CLUTCH
	7M-8480	2	DOWEL
68	8P-4520	1	PISTON-CLUTCH
69	8P-5058	20	SPRING
70	8P-6949	1	PLATE-RETAINER
71	9G-1207	1	BAFFLE AS
72	9M-4355	16	DAMPER-BOLT
73	9M-6193	45	SPRING AS
74	106-7799	4	BALL BEARING
75	9W-4662	6	DISC-FRICTION
76	249-7073	1	MANIFOLD AS
	4B-9784	2	BALL
77		1	SHAFT AS
	9M-2001	1	DOWEL
78		1	SHAFT
79	331-7368	1	ADAPTER
80	331-7369	1	SHAFT AS
	5S-4441	1	DOWEL
80A.	9G-9116	1	BUSHING
81		1	SHAFT
82		1	ADAPTER-DRIVE
83		1	PLATE-RETAINER
84	061-6711	1	RING-RETAINING
85	0L-2070	8	BOLT (3/8-16X2.25-IN)
86	0S-1587	12	BOLT (1/2-13X1.75-IN)
87	0S-1594	21	BOLT (3/8-16X1-IN)
88	0S-1619	1	BOLT (3/8-16X3-IN)
89	0T-0573	7	BOLT (3/8-16X2.75-IN)
90	1A-2029	10	BOLT (3/8-16X1.125-IN)
91	1A-9579	4	BOLT (5/16-18X1.5-IN)
92	1K-6986	1	RING-RETAINING
93	1M-8649	2	RING-RETAINING
94	1M-8652	3	RING-RETAINING
95	1S-6478	1	RING-SEAL
96	1S-9496	1	RING-SEAL
97	1S-9497	1	RING-SEAL
98	1S-9498	1	RING-SEAL
99	1T-0720	21	BOLT-12 POINT HEAD (3/8-16X1.25-IN)
100	2B-0947	2	BOLT (1/2-13X2.25-IN)
101	2H-2525	6	PIN-SPRING
102	2M-5685	8	BEARING
103	2S-0669	12	BEARING
104	3B-1915	6	BOLT (3/8-16X1.375-IN)
105	3K-0159	1	RING-RETAINING
106	3S-1278	3	RING-SEAL
107	3S-1282	2	RING-SEAL
108	3S-1283	1	RING-SEAL
109	3S-2708	15	PIN-SPRING
110	4H-8380	2	PIN-SPRING
111	4M-8871	10	DOWEL
112	4S-5805	1	SEAL-O-RING
113	5K-9107	2	BOLT-LOCKING (3/8-16X0.75-IN)
114	5M-0578	8	BEARING AS ROLLER
115	5M-2051	8	BEARING-CAGED
116	5M-2894	70	WASHER-HARD (10.2X18.5X2.5-MM THK)
117	5M-5018	3	BEARING-ROLLER
118	5M-6126	4	BEARING AS ROLLER
119	5P-8245	44	WASHER-HARD (13.5X25.5X3-MM THK)
120	5S-4442	1	BALL BEARING
121	5S-7779	1	RING-RETAINING
122	6K-4936	16	BOLT-LOCKING (3/8-16X0.625-IN)
123	6L-3670	2	BOLT (3/8-16X7.75-IN)
124	6Y-5888	4	RING-SEAL
125	7G-2176	2	DAMPER-BOLT
126	7G-2488	3	GEAR PLANETARY (33-TEETH)
127	7G-2516	4	GEAR PLANETARY (24-TEETH)
128	358-9117	4	GEAR (23-TEETH)
129	7G-3449	6	GEAR PLANETARY (20-TEETH)
130	7G-3463	4	GEAR PLANETARY (23-TEETH)
131	7G-3462	4	GEAR (23-TEETH)
132	7H-1911	16	BOLT (1/2-13X9.375-IN)
133	8H-3981	1	RING-RETAINING
134	8M-1112	1	SEAL-O-RING
135	8S-3373	2	RING-SEAL
136	8S-3521	2	RING-SEAL
137	8T-5015	1	RING-RETAINING
138	9H-3360	1	SEAL-O-RING
139	9M-1990	5	DOWEL
140	9M-1997	1	BALL BEARING
141	9M-4335	11	DOWEL REACTION
142	9M-6803	1	DOWEL

Factory processing and inventory

Professional charging station logistics | Full range of specifications, rapid response

We support export and accept customization. Global customers are welcome!
ZHZB bearing factory

Bearing inspection

We place great emphasis on quality control and have established a comprehensive quality inspection system. From raw material warehousing to delivery, every purchase and every bearing undergoes rigorous inspection and testing to ensure that we provide our customers with stable, reliable, and standard-compliant products.
ZHZB bearing

Participating in the 2024 Shanghai bauma Exhibition

At ZHZB, we operate with a comprehensive quality control system at its core. From raw material inspection upon arrival to final product delivery,
every sensor undergoes 100% inspection and accuracy verification, strictly adhering to ISO 9001 and other international standards.
This ensures that we provide reliable bearing components for high-end equipment in industries such as mining, road construction, and wind power.
bauma Exhibition

Delivery：

1.We will send express delivery for less than 45 kg, which is more convenient door-to-door

2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive

3.For more than 200 kg, we will send it by sea to reduce transportation costs

Why choose us?

Trusted Product: Durable bearing steel material
Advanced Technology: High precision manufacturing
Reliable Service: Timely communication & after-sale guarantee
Competitive Price: Factory wholesale cost
Adequate Stock: Fast shipment for hot models
Strict QC: Consistent OEM dimensional accuracy

FAQ

Q1: I want to buy your products, how can I pay?

A: You can contact me through Whatsapp to send bank account to you.

Q2: If we don't find what we want on your website, what should we do?

A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.

Q3: Can we buy 1 pc of each item for quality testing?

A: Yes, we are glad to send 1 pc for quality testing if we have the item you need in stock

Q4: Can it directly replace the original bearing? Is installation difficult?

A: Fully OEM interchangeable with identical dimension, plug-and-play installation without any modification.

Q5: Do you accept bulk orders and offer export packaging?

A: Yes, competitive price for large quantity orders. Standard moisture-proof and shockproof export package is available.

Q6: What if I am not sure about the model compatibility?

A: Kindly provide your machine model or original part number, our technical team will double check for you to avoid wrong purchase.

Warranty

1. Warranty period:A 3-month warranty period is provided for the product from the date of arrival. After the customer arrives, the items should be checked against the order list. Contact us and provide any possible data on the item in question.

2. You need to pay the replacement costs in the following situations:

* Wrong orders from customers.

* Any force majeure causes damage.

* Wrong installation.

* Overtime and overload work on parts.

* Lost due to any circumstances.

* Human factors are destroyed.

* Rust and corrosion during storage and operation.

* The warranty has expired.

3. Other

This kind of product is easy to rust, please pack it and store it properly.

Related Tags :

Caterpillar Dump Truck Bearing 2M5685 Chinese manufacturer 2M5685 Chinese Supplier 2M5685 Chinese Factory 2M5685 Caterpillar bearing 2M5685 Needle Bearing 2M5685
