Tapered roller bearing Cone 4M1552 suitable：Dump Truck 793, 793B.
Brand:
ZHZBItem NO.:
4M1552Payment:
T/T ; Western Union; MoneygramProduct Origin:
CHINAShipping Port:
Guangzhou,Qingdao,Shanghai,Ningbo,ShenzhenLead Time：
1-2 Work dayCAT Dump Truck Bearing 4M1552
|
P/N |
4M1552 |
Material: |
GCR15 |
|
i/d |
mm |
O/D |
mm |
|
H |
mm |
Brand： |
ZHZB |
|
Precision |
P0 , P6 , P5 |
Structure: |
Tapered Roller Bearing |
| Minimum order quantity | Negotiable | market price | Negotiable |
Product feature:
Production Process:

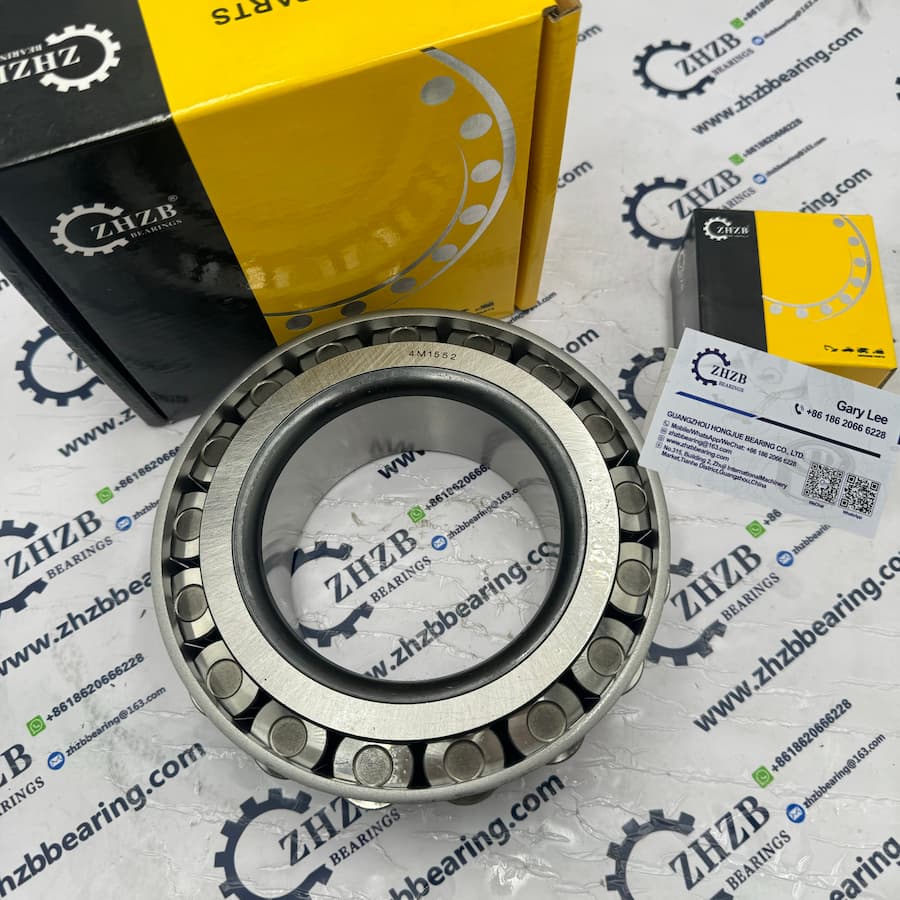

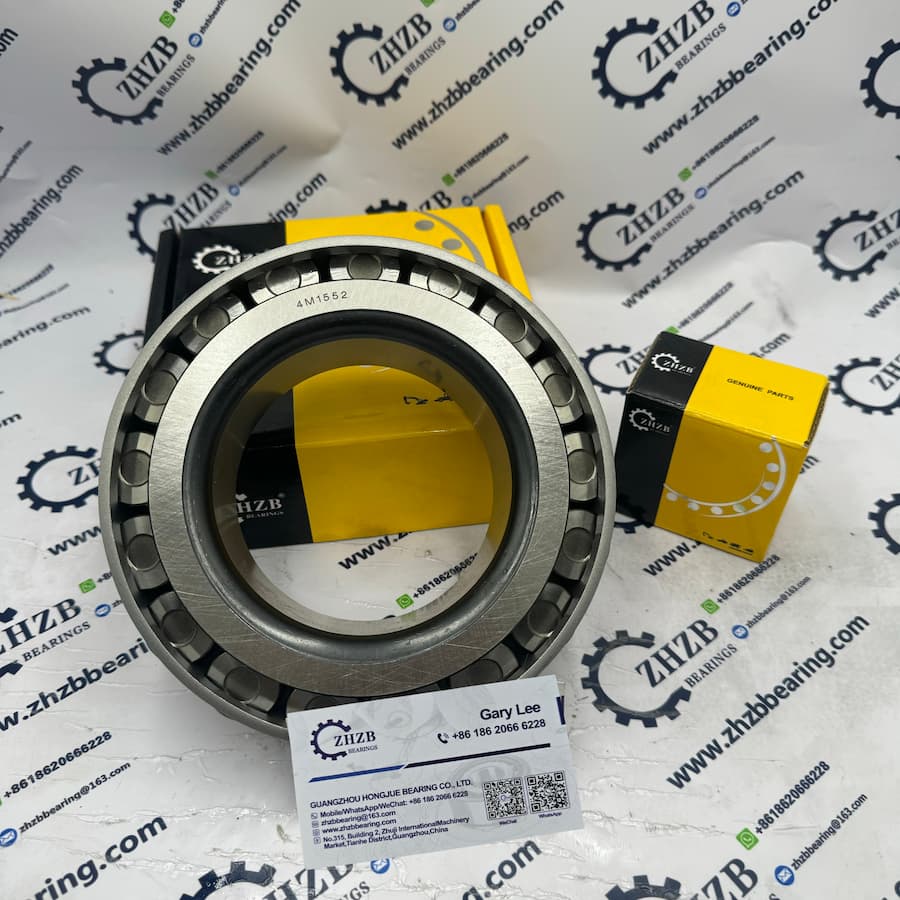

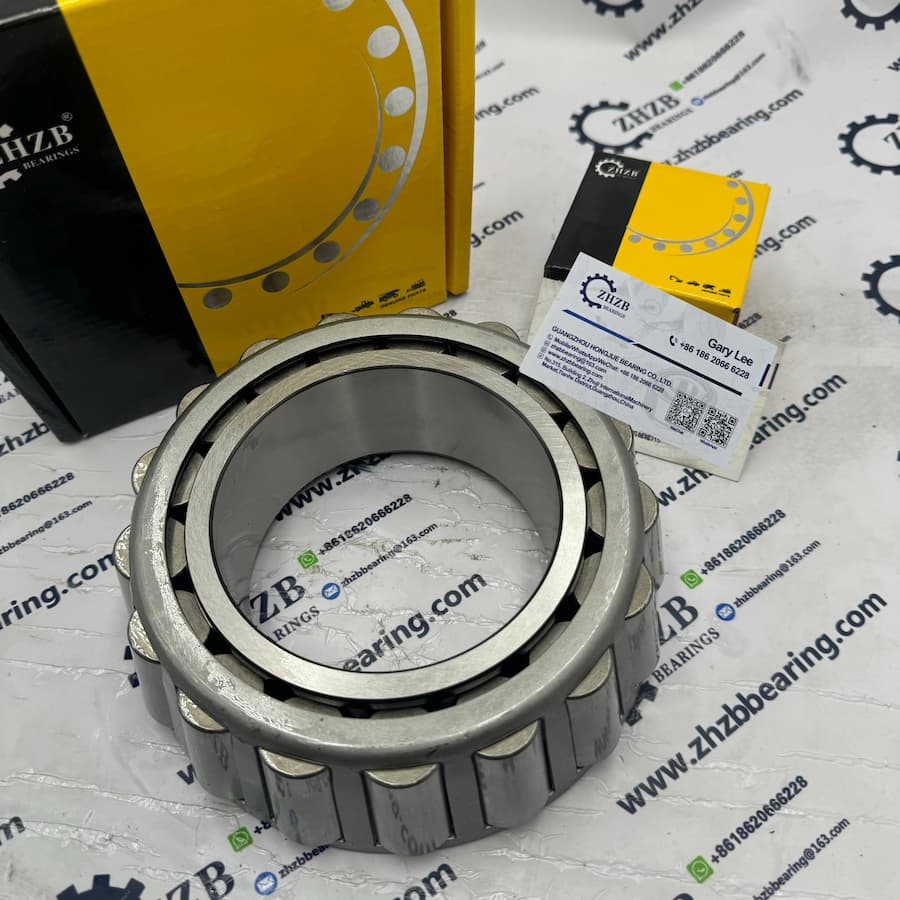

Product Photos
Low rolling friction improves transmission efficiency and reduces heat generation inside the gearbox.
Excellent anti-fatigue performance extends service life in harsh construction environments.
Constructed with high-purity bearing steel, it is impact-resistant and fatigue-resistant for heavy bumpy working conditions.

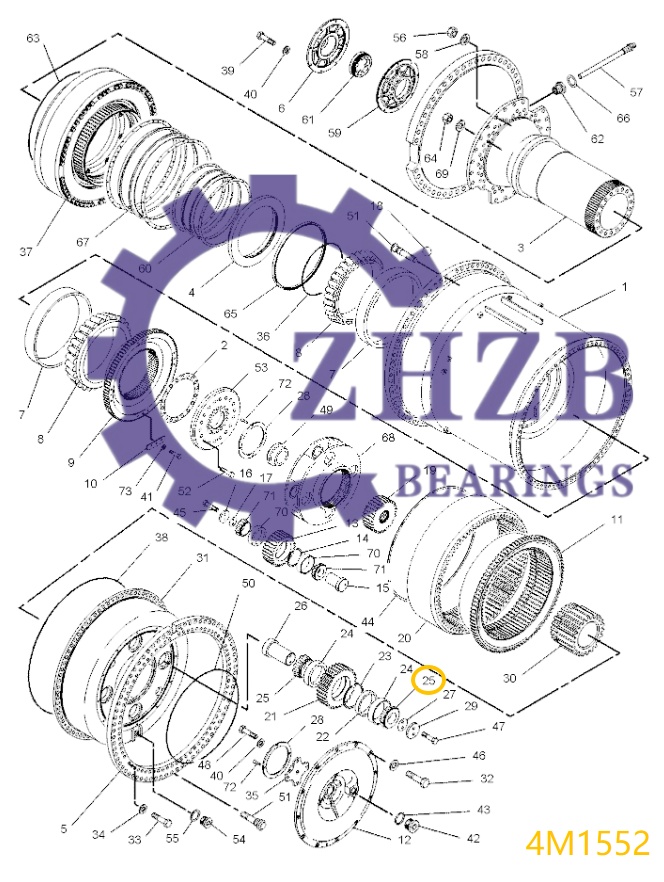

Any other parts for the final drive gearbox system you need pls search from below picture and form list then mark to me we will quote to you
Pos
Part No
Qty
Parts name
1
102-0313 C
1
WHEEL AS
2
8X-1477
1
SHIM PACK
3
8X-1067
1
HOUSING AXLE
4
8X-1202
1
RETAINER SEAL
5
8X-1433
1
RING
6
6G-8580
1
GUIDE
7
6Y-6492
2
CUP-BEARING
8
8E-7921
2
CONE BEARING
9
8X-0560
1
HUB
10
101-9445
4
RETAINER
11
4E-4445
1
GEAR-RING
12
7I-5594
1
COVER
13
8X-0476
4
GEAR PLANETARY
14
8W-3074
4
RING-LOCK
15
7I-5540
4
SHAFT
16
8W-3088
4
PLATE
17
8W-6910
4
SHIM PACK
18
4B-9784
2
BALL
19
8X-0468
1
GEAR-SUN
20
4E-4446
1
GEAR-RING
21
8X-0499
4
GEAR PLANETARY
22
8X-0562
4
SPACER
23
8X-0563
4
RING-LOCK
24
3F-5920
8
CUP-BEARING
25
4M-1552
8
CONE BEARING
26
7I-5534
4
SHAFT PLANETARY
27
8X-0566
4
SHIM PACK
28
7I-5535
2
WASHER THRUST
29
8X-0567
4
PLATE
30
8X-0501
1
GEAR-SUN
31
8X-0603
1
CARRIER PLANETARY
32
8T-4183 M
15
BOLT
33
8T-0669 M
72
BOLT
34
6V-8237
72
WASHER
35
2G-4553
1
PLATE
36
6V-9670 C
1
SEAL-O-RING
37
8X-0241 Y
1
BRAKE GP SERVICE & PARKING
38
7X-4781
1
SEAL-O-RING
39
6V-5843 M
8
BOLT
40
6V-5839
12
WASHER
41
6V-3668 M
12
BOLT
42
6V-0439
1
PLUG MAGNETIC
43
2S-4078
1
SEAL-O-RING
44
8X-0559
1
RING RETAINING
45
5K-8454
8
BOLT
46
8T-4223
15
WASHER HARD
47
6V-3303 M
8
BOLT
48
6V-4248 M
4
BOLT
49
8X-4161
1
BEARING
50
2D-6506
1
SEAL-O-RING
51
8X-0274 M
140
STUD-SPECIAL
52
8T-0667 M
18
BOLT
53
8X-0449
1
RETAINER
54
6B-5262
1
PLUG
55
2A-3398
1
GASKET
56
2J-3507
21
NUT-FULL
57
3T-2470
1
SENSOR SPEED
58
5P-8250
21
WASHER
59
5T-0832
1
HOUSING
60
179-6863 C
1
SEAL GP-DUOCONE
61
145-6043
2
RING-TORIC
62
5T-8041
1
ADAPTER
63
4H-6730
1
SEAL-O-RING
64
2J-3505
47
NUT-FULL
65
9X-7315
1
SEAL AS
66
5T-8168 B
3
SHIM
66
5T-8042 B
2
SHIM
66
5T-8169 B
2
SHIM
67
9W-7206
1
SEAL GP-DUOCONE
68
7I-5595
1
CARRIER PLANETARY
69
5P-8249
47
WASHER HARD
70
8E-7925
8
CUP-BEARING
71
8E-7924
8
CONE BEARING
72
8C-7562 M
4
SCREW-FLAT HEAD
73
5P-8245
12
WASHER HARD
Reluted Produts
Factory processing and inventory
Professional charging station logistics | Full range of specifications, rapid response
We support export and accept customization. Global customers are welcome!
Bearing inspection
We place great emphasis on quality control and have established a comprehensive quality inspection system. From raw material warehousing to delivery, every purchase and every bearing undergoes rigorous inspection and testing to ensure that we provide our customers with stable, reliable, and standard-compliant products.
Participating in the 2024 Shanghai bauma Exhibition
At ZHZB, we operate with a comprehensive quality control system at its core. From raw material inspection upon arrival to final product delivery,
every sensor undergoes 100% inspection and accuracy verification, strictly adhering to ISO 9001 and other international standards.
This ensures that we provide reliable bearing components for high-end equipment in industries such as mining, road construction, and wind power.
Delivery：
1.We will send express delivery for less than 45 kg, which is more convenient door-to-door
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs
Why choose us?
Trusted Product: Durable bearing steel materialFAQ
Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.
Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Do you accept bulk orders and long-term cooperation?
A: Yes, we support mass production and stable long-term supply.
Q5: What about the warranty policy?
A: All items are strictly inspected before shipment. We offer after-sales service for non-artificial quality defects.
Q6: Can you provide product photos, packing list and shipping mark?
A: Sure, we can supply real photos, packing documents and marks once order confirmed.
Warranty
1. Warranty period:A 3-month warranty period is provided for the product from the date of arrival. After the customer arrives, the items should be checked against the order list. Contact us and provide any possible data on the item in question.
2. You need to pay the replacement costs in the following situations:
* Wrong orders from customers.
* Any force majeure causes damage.
* Wrong installation.
* Overtime and overload work on parts.
* Lost due to any circumstances.
* Human factors are destroyed.
* Rust and corrosion during storage and operation.
* The warranty has expired.
3. Other
This kind of product is easy to rust, please pack it and store it properly.
