Caterpillar Bulldozer Torque Converter Bearing 3H-1996 Suitable: D6T, D7E, D8T.
Brand:
ZHZBItem NO.:
3H-1996Payment:
T/T ; Western Union; MoneygramProduct Origin:
CHINAShipping Port:
Guangzhou,Qingdao,Shanghai,Ningbo,ShenzhenLead Time：
1-2 Work dayCaterpillar Bulldozer Bearing 3H-1996
|
P/N |
3H-1996 |
Material: |
GCR15 |
|
i/d |
mm |
O/D |
mm |
|
H |
mm |
Brand： |
ZHZB |
|
Precision |
P0 , P6 , P5 |
Structure: |
Ball Bearing |
| Minimum order quantity | Negotiable | market price | Negotiable |
Product feature:
Production Process:
TOUTUBE

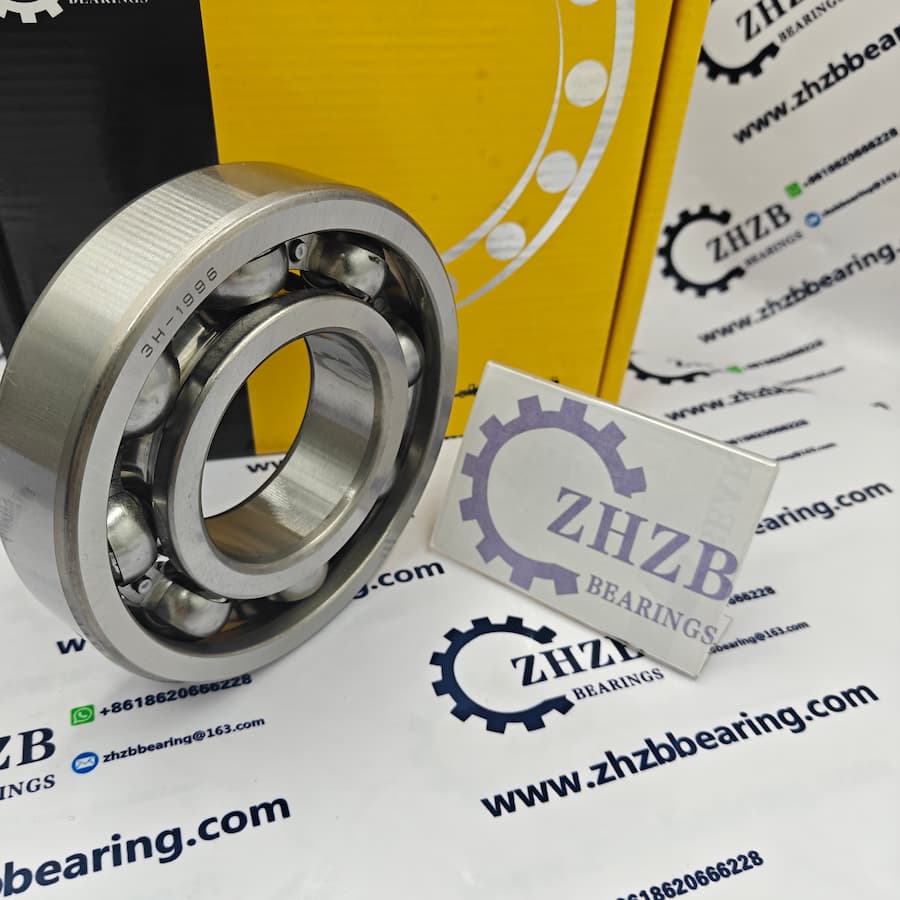

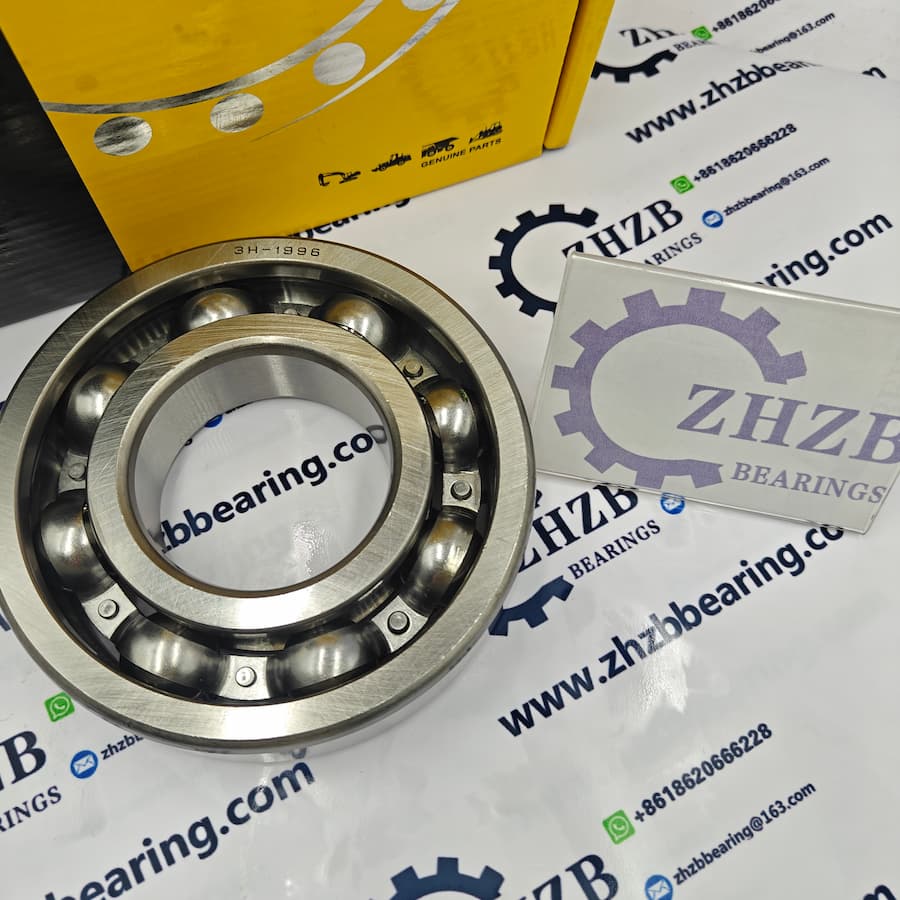

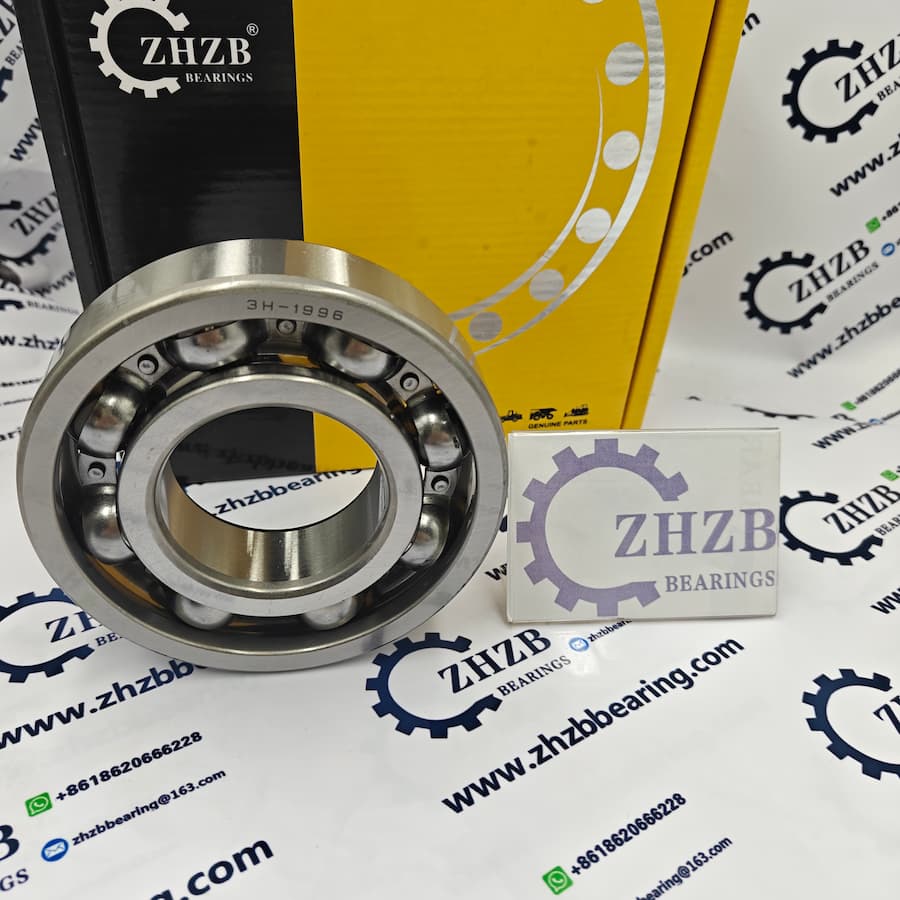

Product Photos
Perfect fit for Caterpillar D6T D7E D8T bulldozer torque converter
Fast delivery and reliable after-sales service
Constructed with high-purity bearing steel, it is impact-resistant and fatigue-resistant for heavy bumpy working conditions.
Any other parts for the final drive gearbox system you need pls search from below picture and form list then mark to me we will quote to you
Pos.
Part No
Qty
Parts name
1
385-8507
11
SPRING-FREEWHEEL
2
459-1195
1
BEARING-THRUST
3
1T-0657
1
PLATE
4
1T-0679
11
ROLLER-FREEWHEEL
5
1T-1281
1
RETAINER-BEARING
6
1T-1282
1
RACE-THRUST BEARING
7
1T-1356
1
RING-SEAL
8
1T-1597
2
RING-SEAL
9
7G-8427
2
RING-SEAL
10
8B-7789
3
RING-SNAP
11
260-9554
1
PLATE-SPLINED
12
260-9555
1
PLATE-BACKING
13
275-5308
1
DISC-FRICTION
14
284-3599
1
CAM-FREEWHEEL
15
352-5616
1
PLATE
16
372-0673
1
PLATE
17
398-9596
1
RACE
18
398-9606
1
HUB-IMPELLER
19
418-9562
1
TURBINE
20
418-9563
1
IMPELLER
21
418-9564
1
STATOR
22
423-3244
1
SEAL-O-RING
23
423-3245
1
SEAL-O-RING
24
424-4502
1
PISTON-LOCKUP CLUTCH
25
1
ADAPTER
26
445-7817
2
RING-SEAL
27
454-6278
1
HUB-TURBINE
28
454-6279
1
HOUSING AS-CLUTCH
28A.
4L-4931
1
BUSHING
1T-0936
1
PLUG-ORIFICE
260-9154
2
PLUG AS (EACH INCLUDES)
8C-3076
1
SEAL-O-RING
260-9153
1
PLUG
29
454-6280
1
FLANGE AS
29A.
6N-8441
1
BUSHING
29B.
156-7485
1
BUSHING
1
FLANGE-OUTPUT
30
454-6281
1
SHAFT AS
5P-7679
1
RACE-SPECIAL ROLLER BEARING
7T-9356
1
PLUG-CUP
9S-8001
1
PLUG
31
477-9339
1
CARRIER-STATOR
32
002-3136
1
RING-SNAP
33
128-3936
1
RACE-BEARING
34
1S-6477
1
RING-SEAL
35
1S-9496
1
RING-SEAL
36
1T-0655
1
BEARING-THRUST
37
1T-0686
1
RACE-THRUST BEARING
38
1T-1078
1
BEARING-THRUST
39
1T-1278
1
BEARING-THRUST
40
3H-1996
1
BEARING
41
5H-5012
1
RING-RETAINING
42
5P-4343
1
RACE-ROLLER BEARING
43
5P-7213
8
WASHER-HARD (13.5X20.5X2-MM THK)
44
6V-3822 M
20
BOLT (M10X1.5X35-MM)
45
6V-5839
44
WASHER (11X21X2.5-MM THK)
46
6V-7981 M
24
BOLT (M10X1.5X70-MM)
47
7B-0472
2
DOWEL
48
8T-0273 M
8
BOLT-SOCKET HEAD (M12X1.75X40-MM)
49
8T-1743
2
RING-RETAINING
Reluted Produts
Factory processing and inventory
Professional charging station logistics | Full range of specifications, rapid response
We support export and accept customization. Global customers are welcome!
Bearing inspection
We place great emphasis on quality control and have established a comprehensive quality inspection system. From raw material warehousing to delivery, every purchase and every bearing undergoes rigorous inspection and testing to ensure that we provide our customers with stable, reliable, and standard-compliant products.
Participating in the 2024 Shanghai bauma Exhibition
At ZHZB, we operate with a comprehensive quality control system at its core. From raw material inspection upon arrival to final product delivery,
every sensor undergoes 100% inspection and accuracy verification, strictly adhering to ISO 9001 and other international standards.
This ensures that we provide reliable bearing components for high-end equipment in industries such as mining, road construction, and wind power.
Delivery：
1.We will send express delivery for less than 45 kg, which is more convenient door-to-door
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs
Why choose us?
Trusted Product: Durable bearing steel materialFAQ
Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.
Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q3: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1 pc for quality testing if we have the item you need in stock
Q4: What precision grades are available?
A: We supply P0, P6 and P5 precision grades for your choice.
Q5: Is this an original replacement part?
A: Yes, it is a direct aftermarket replacement with standard size and good interchangeability.
Q6: What is your brand?
A: Brand ZHZB, professional manufacturer of construction machinery bearings.
Warranty
1. Warranty period:A 3-month warranty period is provided for the product from the date of arrival. After the customer arrives, the items should be checked against the order list. Contact us and provide any possible data on the item in question.
2. You need to pay the replacement costs in the following situations:
* Wrong orders from customers.
* Any force majeure causes damage.
* Wrong installation.
* Overtime and overload work on parts.
* Lost due to any circumstances.
* Human factors are destroyed.
* Rust and corrosion during storage and operation.
* The warranty has expired.
3. Other
This kind of product is easy to rust, please pack it and store it properly.
