Cylindrical Roller Bearing 2D-8341/7B-3642 for Caterpillar Bulldozer D6H Spare Parts

Caterpillar Bulldozer bearing 2D-8341/7B-3642 suitable：D6H.

Brand:
ZHZB
Item NO.:
2D-8341/7B-3642
Payment:
T/T ; Western Union; Moneygram
Product Origin:
CHINA
Shipping Port:
Guangzhou,Qingdao,Shanghai,Ningbo,Shenzhen
Lead Time：
1-2 Work day

Product Detail

Caterpillar Bulldozer Bearing 2D-8341/7B-3642

Specification

P/N	2D-8341/7B-3642	Material:	GCR15
i/d	mm	O/D	mm
H	mm	Brand：	ZHZB
Precision	P0 , P6 , P5	Structure:	Cylindrical Roller Bearing
Minimum order quantity	Negotiable	market price	Negotiable

Product feature:

Perfect fit for Caterpillar D6H bulldozer, OEM part number 2D-8341/7B-3642, direct replacement for original parts, easy installation.
Made of high-quality bearing steel, wear-resistant and impact-resistant, durable under heavy-load and dusty working conditions.
Cylindrical roller structure with strong radial load capacity, stable operation and low power loss.
Multiple precision grades P0, P6, P5 available to match different working demands.
Compact structure and cost-effective, greatly reduce maintenance expenses.

Our advantae:

15 years professional experience in construction machinery bearings, focus on replacement bearings for Caterpillar, Komatsu, Volvo bulldozers and excavators.
Strict full-process quality inspection, adopt GCr15 bearing steel, stable supply with P0/P6/P5 multiple precision grades.
Large stock of OEM part numbers, fast model matching and short lead time for clients.
Direct factory supply without middlemen, cost-effective price, support bulk order and complete export customs clearance.
Professional foreign trade service team, timely technical support, logistics tracking and global reliable delivery.

Production Process:

ZHZB Bearing 2D-8341/7B-3642
YOUTUBE

Product Photos

Bearing Supplier 2D-8341/7B-3642

ZHZBbearing uses qualified GCr15 steel raw material to extend bearing service life in harsh engineering machinery environments.

Caterpillar 2D-8341/7B-3642

Easy‑to‑install design helps you save equipment maintenance time and labor costs.

Bulldozer Bearing 2D-8341/7B-3642

Manufactured from premium bearing steel, this bearing delivers outstanding wear resistance under heavy‑load construction conditions.

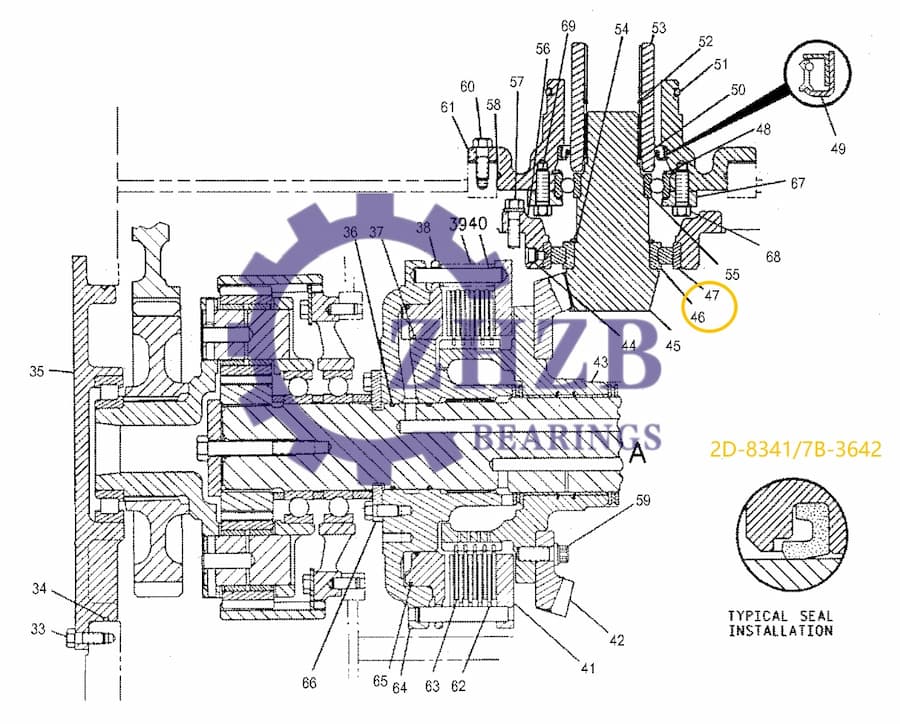

Any other parts for the final drive gearbox system you need pls search from below picture and form list then mark to me we will quote to you

Bearing Manufacture 2D-8341/7B-3642
Reluted Produts

Pos.	Part No	Qty	Parts name
1	9G-2008	1	FLANGE
2	1P-3935	4	CONE-BEARING
	1P-3934	4	CUP-BEARING
3	1P-9244	1	SPACER
4	5P-7456	1	SEAL-LIP TYPE
5	2R-0239	1	SEAL-O-RING
6	9G-2010	1	SUPPORT
7	9G-2011	1	SHAFT AS
8	4B-9783	1	BALL
9	6Y-6586	1	DRUM
10	1H-5728	1	SEAL-O-RING
11	3P-2846	1	SPACER
12	8S-5767	1	SEAL-LIP TYPE
13	6F-8146	2	SEAL-O-RING
14	5F-3353	2	NUT
15	6B-1776	2	COLLAR
16	9G-2012	1	RETAINER
17	1P-8952	1	CLAMP
18	0S-1595	1	BOLT (1/2-13X1.25-IN)
	5P-8245	1	WASHER-HARD (13.5X25.5X3-MM THK)
19	1T-0765	6	BOLT (3/8-16X1-IN)
20	0S-1587	12	BOLT (1/2-13X1.75-IN)
	2M-0849	12	WASHER-HARD (13.5X25.5X5-MM THK)
21	9U-8155 C	1	GEAR (64-TEETH)
22	1P-7896	2	CUP-BEARING
	1P-7895	2	CONE-BEARING
23	9G-1981 B	2	SHIM PACK (INCLUDES 4 SHIMS)
24	4H-6520	1	SEAL-O-RING
25	0S-1594	16	BOLT (3/8-16X1-IN)
26	9G-1982	1	CAGE-BEARING
27	4B-4845	1	PLUG
28	6D-9157	1	SEAL-O-RING
29	9W-7391	1	GEAR
30	1P-9245	1	RING-RETAINING
31	9S-1366	8	BOLT (1/2-13X2.5-IN)
32	9G-2007 B	8	SHIM PACK (INCLUDES 4 SHIMS)
33	0S-1594	12	BOLT (3/8-16X1-IN)
34	2R-0239	1	SEAL-O-RING
35	9W-6970	1	CAGE
36	8F-8882	4	SEAL-O-RING
37	2P-3597	1	RING-SEAL
38	6Y-2646	1	PISTON
39	9S-8237	20	SPRING
40	9M-4335	30	DOWEL-REACTION
41	3T-9201	1	PLATE
42	9G-1963	1	GEAR
43	8E-0397 C	1	HOUSING
	4F-4679	1	DOWEL
44	9G-1985	1	PINION-BEVEL (16 TEETH)
45	7B-3642	1	BEARING-INNER
46	2D-8341	1	RACE-ROLLER BEARING
47	5J-3964	1	RING-LOCK
48	4B-8024	1	SEAL-LIP TYPE
49	2H-3927	1	SEAL-O-RING
50	1J-2859	1	SEAL-O-RING
51	5H-6480	1	RING-RETAINING
52	9G-1992	1	COUPLING
53	6S-1753	1	RING-RETAINING
54	2D-5658	1	BALL BEARING
55	9W-2730	1	CAGE-BEARING
56	3B-1915	6	BOLT (3/8-16X1.375-IN)
	5M-2894	6	WASHER-HARD (10.2X18.5X2.5-MM THK)
57	3J-0634	1	SEAL-O-RING
58	8M-2530	16	BOLT-12 POINT HEAD (1/2-13X1.25-IN)
59	1A-2029	6	BOLT (3/8-16X1.125-IN)
60	8E-2896	1	CAGE-BEARING
	9G-1990 B	2	SHIM PACK (INCLUDES 6 SHIMS)
61	3T-9205	10	PLATE
62	6T-2317	10	DISC-FRICTION
63	6T-2978	1	HOUSING AS
	8B-1312	2	DOWEL
64	6T-3003	1	RING-SEAL
65	9G-1970	2	PLATE-LOCK
66	8E-2895	1	RETAINER
67	0S-1594	4	BOLT (3/8-16X1-IN)
68	0S-1594 C	4	BOLT (3/8-16X1-IN)
69	8B-8439	2	BALL BEARING
70	1P-6188	4	PLATE-LOCK
71	2A-4639	8	BOLT (3/8-16X1.625-IN)
72	0L-1351	6	BOLT (3/8-16X0.875-IN)
73	8E-5587 C	1	CARRIER
74	7G-2500	4	GEAR-PLANETARY (23-TEETH)
75	9W-6968	1	SPACER
76	9W-7134	1	GEAR (53 TEETH)
77	0L-2315	1	BOLT (1/2-20X3.5-IN)
78	2S-6408	1	WASHER RETAINING (0.531X3.25X0.438-IN THK)
79	4M-3915	8	BEARING-CAGED
80	3S-2708	4	PIN-SPRING
81	1P-4056	4	SHAFT PLANETARY
82	1P-6182	1	GEAR-SUN (35-TEETH)(35 TEETH)
83	2D-5173	1	BEARING AS ROLLER
84	5S-5729	1	RACE-BEARING INNER
85	2P-1985 B	1	SHIM PACK (INCLUDES 4-SHIMS)(INCLUDES 4 SHIMS)
86	2P-1990	2	SPACER
87	2P-1981	1	GEAR-RING (81-TEETH)(81 TEETH)
88	7T-3143	8	DISC-THRUST
89	1P-6209	1	CAGE-BEARING
90	8E-277	1	SHAFT AS-CLUTCH
90	4B-9783	1	BALL (SMALL)
	4B-9784	1	BALL (LARGE)
91	2P-1005	4	BUSHING
92	3J-8903	4	RING-RETAINING
93	9G-1963	1	GEAR (52 TEETH)
94	3T-9201	1	PLATE
95	6Y-2646	1	PISTON
96	6T-4187	1	PLATE AS
97	7S-2245	3	DOWEL
98	6T-4944	8	DISC-FRICTION
99	6T-2310	1	PISTON
100	6T-2311	1	HOUSING
101	9G-2015	1	CAGE-BEARING
102	9G-2001	1	PISTON
103	8M-4437	8	SEAL-O-RING
104	7G-9979	4	SLEEVE
105	2H-3932	4	SEAL-O-RING
106	9S-4191	4	PLUG (9/16-18-THD)
	3J-1907	4	SEAL-O-RING
107	2J-6274	1	SEAL-O-RING
108	6P-3767	3	SPRING-DISC
109	9G-5382	1	MANIFOLD AS
	4B-9783	2	BALL
110	9G-2004	1	WASHER
111	0S-1588	2	BOLT (3/8-16X1.25-IN)
112	5P-2545	2	SEAL-O-RING
113	7S-8554	1	SEAL-O-RING
114	1A-2029	4	BOLT (3/8-16X1.125-IN)
115	6T-2978	1	HOUSING AS
	8B-1312	2	DOWEL
116	2P-3597	2	RING-SEAL
117	0S-1594	6	BOLT (3/8-16X1-IN)
118	0S-1571	6	BOLT (3/8-16X1.75-IN)
	5M-2894	6	WASHER-HARD (10.2X18.5X2.5-MM THK)
119	9W-2679	1	PLATE
120	2N-2139	2	CONE-BEARING
121	2N-2138	2	CUP-BEARING
122	9G-1997	1	PLATE
123	2P-4511	1	RING-SEAL
124	7T-1131	1	CAGE-FREEWHEEL
125	6H-7201	3	RING-METAL SEAL
126	9G-2005	1	SLEEVE-SEAL RING
127	9G-2003	1	SPACER
128	0S-1591	8	BOLT (3/8-16X1.5-IN)
129	6T-3002	1	RING-SEAL
130	9G-1999 B	6	SHIM PACK (INCLUDES 5 SHIMS)
131	9G-1998	1	HOUSING
132	9G-1996	1	PLATE-REACTION
133	7T-1127	6	SPRING
134	2P-4370	6	PLATE-CLUTCH
135	8E-0636	24	ROLLER FREEWHEEL
136	0S-1594	12	BOLT (3/8-16X1-IN)
137	7T-1132	1	CAM-FREEWHEEL
138	9G-1994	1	SPACER
139	9G-1995	1	HUB
140	6T-3003	2	RING-SEAL
141	1L-8793	6	BOLT-SOCKET HEAD (3/8-16X2-IN)
142	0S-1608	20	BOLT (3/8-16X3.75-IN)
143	8E-0397 C	1	HOUSING
144	1P-6071	4	RACE-THRUST BEARING
145	1P-6070	2	BEARING-THRUST
146	6Y-9701 B	4	SHIM PACK (INCLUDES 5 SHIMS)
147	6Y-9700	2	PLATE-LOCK
148	6Y-9702	2	PLATE-LOCK
149	0L-1143 C	1	BOLT (3/8-16X2.5-IN)
150	6T-5318	1	COVER
151	6T-5325	1	PISTON
152	7T-7933	1	RETAINER
	9W-5113	5	SPRING
153	2H-3755	5	BOLT (5/16-18X0.43-IN)
154	1B-8709	1	KEY-WOODRUFF
155	6T-5975	1	COUPLER
156	9U-8150 C	1	GEAR-PINION (10-TEETH)
157	6T-6034	1	SHAFT
158	6T-5329	1	PLATE
159	1D-4716	3	NUT-FULL (5/16-18-THD)
160	6T-5327	1	CYLINDER AS
	3J-7168	1	BEARING
161	1P-9252	1	RING-SEAL
162	1H-9696	1	SEAL-O-RING
163	0S-1594 C	4	BOLT (3/8-16X1-IN)
164	8E-6928 C	1	SHAFT
165	9W-5271	1	FORK AS
	1L-8631	2	BUSHING-GUIDE
166	7W-0134	1	SPRING-PUMP
167	7T-6555	1	SPRING
168	6T-5322	1	SPACER
169	3H-0107 C	1	SEAL-O-RING
170	5F-8000	1	SEAL-O-RING
171	6T-8576 B	3	SHIM PACK (INCLUDES 8 SHIMS)
172	6P-9546	1	PLUG
173	9G-2013	1	SPACER
174	6P-9547	1	SPRING
175	6P-9548	1	KNOB
176	1J-5622	1	FLANGE-CAPTIVE
177	0S-1591	2	BOLT (3/8-16X1.5-IN)
178	5P-1075	3	WASHER-HARD (10.2X22.5X3-MM THK)

Factory processing and inventory

Professional charging station logistics | Full range of specifications, rapid response

We support export and accept customization. Global customers are welcome!
ZHZB bearing factory

Bearing inspection

We place great emphasis on quality control and have established a comprehensive quality inspection system. From raw material warehousing to delivery, every purchase and every bearing undergoes rigorous inspection and testing to ensure that we provide our customers with stable, reliable, and standard-compliant products.
ZHZB bearing

Participating in the 2024 Shanghai bauma Exhibition

At ZHZB, we operate with a comprehensive quality control system at its core. From raw material inspection upon arrival to final product delivery,
every sensor undergoes 100% inspection and accuracy verification, strictly adhering to ISO 9001 and other international standards.
This ensures that we provide reliable bearing components for high-end equipment in industries such as mining, road construction, and wind power.
bauma Exhibition

Delivery：

1.We will send express delivery for less than 45 kg, which is more convenient door-to-door

2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive

3.For more than 200 kg, we will send it by sea to reduce transportation costs

Why choose us?

Trusted Product: Durable bearing steel material
Advanced Technology: High precision manufacturing
Reliable Service: Timely communication & after-sale guarantee
Competitive Price: Factory wholesale cost
Adequate Stock: Fast shipment for hot models
Strict QC: Consistent OEM dimensional accuracy

FAQ

Q1: I want to buy your products, how can I pay?

A: You can contact me through Whatsapp to send bank account to you.

Q2: If we don't find what we want on your website, what should we do?

A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.

Q3: Can we buy 1 pc of each item for quality testing?

A: Yes, we are glad to send 1 pc for quality testing if we have the item you need in stock

Q4: Bearing type and load capacity?

A4: Cylindrical roller bearing with strong radial load capacity, stable rotation and low energy consumption.

Q5: Do you accept bulk orders and how about lead time?

A5: Bulk wholesale & export orders are welcome. Most items are in stock, we can arrange shipment quickly after order confirmation.

Q6: Is any modification needed during installation?

A6: Produced strictly according to OEM standard, plug-and-play directly without any cutting or machining.

Q7: What about after-sales service?

A7: All products pass strict factory inspection. Please contact our sales team directly if any quality problem occurs.

Warranty

1. Warranty period:A 3-month warranty period is provided for the product from the date of arrival. After the customer arrives, the items should be checked against the order list. Contact us and provide any possible data on the item in question.

2. You need to pay the replacement costs in the following situations:

* Wrong orders from customers.

* Any force majeure causes damage.

* Wrong installation.

* Overtime and overload work on parts.

* Lost due to any circumstances.

* Human factors are destroyed.

* Rust and corrosion during storage and operation.

* The warranty has expired.

3. Other

This kind of product is easy to rust, please pack it and store it properly.
