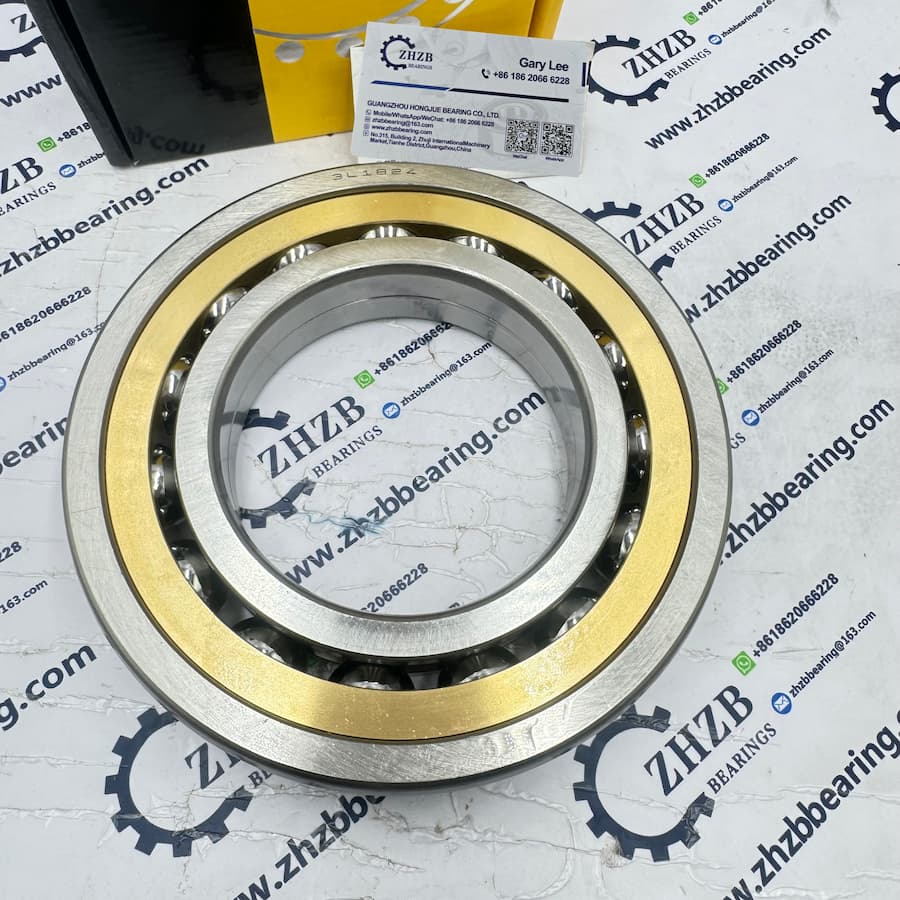

Dump Truck Spare Parts Bearing 3L1824 suitable:773G, 775G, 777D, 785B
Brand:
ZHZBItem NO.:
3L1824Payment:
T/T ; Western Union; MoneygramProduct Origin:
CHINAShipping Port:
Guangzhou,Qingdao,Shanghai,Ningbo,ShenzhenLead Time：
1-2 Work dayCAT Dump Truck Bearing 3L1824
|
P/N |
3L1824 |
Material: |
GCR15 |
|
i/d |
mm |
O/D |
mm |
|
H |
mm |
Brand： |
ZHZB |
|
Precision |
P0 , P6 , P5 |
Structure: |
Ball Bearing |
| Minimum order quantity | Negotiable | market price | Negotiable |
Product feature:
Production Process:
Product Photos
Low rolling friction improves transmission efficiency and reduces heat generation inside the gearbox.
Excellent anti-fatigue performance extends service life in harsh construction environments.
Constructed with high-purity bearing steel, it is impact-resistant and fatigue-resistant for heavy bumpy working conditions.
Any other parts for the final drive gearbox system you need pls search from below picture and form list then mark to me we will quote to you
Pos
Part No
Qty
Parts name
1
1B-4367
1
BOLT (5/8-11X3-IN)
2
3P-1669
1
RETAINER (SHAFT)
3
5H-2824
1
SEAL-O-RING
4
1T-2006
1
YOKE
5
9X-4605
1
SEAL-LIP TYPE
6
6Y-6370
2
RING-SEAL
7
1T-1821
1
CARRIER-RING
8
9B-7237
11
BOLT (3/8-16X1.25-IN)
9
1T-2007
1
DISTRIBUTORFLUID
10
7L-3385
1
SEAL-O-RING
11
9S-8008
1
PLUG (1-1/16-12-THD)
12
8M-2031
1
BALL BEARING
13
1T-1209
1
CARRIER-RING (SEAL)
14
7T-2219
1
RING-SEAL
15
1T-1688
1
SHAFT-OUTPUT
16
1T-1925
1
GASKET (FLAT)
17
1T-1832
1
CARRIERSTATOR
18
5P-6408
1
BEARINGINNER
19
1T-1258
1
RING-SNAP
20
7T-2218
2
RING-SEAL
21
1T-0720
8
BOLT-12 POINT HEAD (3/8-16X1.25-IN)
22
1T-1098
1
GEAR-PUMP DRIVE (62-TEETH)
23
1T-1254
2
WASHER (SPLIT)
24
2B-2695
6
BOLT (5/16-18X0.875-IN)
25
3H-5368
24
BOLT (7/16-14X1.375-IN)
26
5P-8244
24
WASHER-HARD (12X22.5X2.5-MM THK)
27
1T-1549
1
HOUSING (ROTATING)
28
1T-1247
1
SLEEVE-WEAR
29
1T-1716
1
IMPELLER ASCONVERTER
30
1T-1838
1
HUB ASIMPELLER
31
1T-1650
1
SLEEVE
32
1T-1651
1
RACE-THRUST BEARING
33
1T-1836
2
WASHERRETAINING
34
8T-7922
2
SCREW-HEX SOCKET (10-24X0.383-IN)
35
0S-1594
8
BOLT (3/8-16X1-IN)
36
1T-1566
1
BEARINGTHRUST
37
1T-1646
1
PLATE
38
1T-1235
1
CAMFREEWHEEL
39
1T-1855
1
RACEFREEWHEEL
40
1T-1754
22
ROLLERFREEWHEEL
41
1T-1261
1
CAGE-ROLLER
42
1T-1257
2
SPRING
43
1T-1938
1
STATORCONVERTER
44
1T-1232
2
RINGRETAINING
45
1T-1646
1
PLATE
46
5P-4055
1
BEARINGTHRUST
47
1T-2036
1
HUB AS
48
1T-1253
1
BUSHING
49
1T-2042
1
SLEEVE
50
1T-2043
1
RACE-THRUST BEARING
53
1T-1553
1
TURBINECONVERTER
54
1T-1259
1
RING-SNAP (EXTERNAL)
55
1T-1343
1
HUB-CLUTCH
56
0S-1585
8
BOLT (1/2-13X1.5-IN)
57
4F-4879
12
BOLT (3/8-16X0.5-IN)
58
1T-1244
4
WASHER (SPLIT)
59
1T-1982
1
PLATEBACKING
60
8E-8328
3
DISC-FRICTION
61
1T-1897
2
PLATE-CLUTCH
62
1T-1899
1
PISTONLOCKUP CLUTCH
63
3S-1284
1
RING-SEAL
64
1T-1819
1
CARRIERCLUTCH
65
0S-1566
24
BOLT (5/8-11X1.5-IN)
66
3P-9497
1
PLUG-ORIFICE (7/16-27-THD)
67
3D-4603
1
PLUG-PIPE
68
7T-2219
1
RING-SEAL
69
1T-1365
1
CARRIER-RING
70
1T-1248
1
SLEEVE-WEAR
71
3L-1824
1
BALL BEARING
72
1T-1251
5
SHIM (0.01-IN THK)(.254MM .01IN THK)
73
1T-1643
3
SHIM (0.08-MM THK)(.08MM .003IN THK)
74
1L-7548
1
SEAL-O-RING
75
1T-1233
1
RETAINER
76
1A-1460
3
BOLT (1/2-13X2-IN)
77
1T-1773
1
PILOTFLYWHEEL
78
0S-1595
12
BOLT (1/2-13X1.25-IN)
79
8S-3373
1
RING-SEAL
Reluted Produts
Factory processing and inventory
Professional charging station logistics | Full range of specifications, rapid response
We support export and accept customization. Global customers are welcome!
Bearing inspection
We place great emphasis on quality control and have established a comprehensive quality inspection system. From raw material warehousing to delivery, every purchase and every bearing undergoes rigorous inspection and testing to ensure that we provide our customers with stable, reliable, and standard-compliant products.
Participating in the 2024 Shanghai bauma Exhibition
At ZHZB, we operate with a comprehensive quality control system at its core. From raw material inspection upon arrival to final product delivery,
every sensor undergoes 100% inspection and accuracy verification, strictly adhering to ISO 9001 and other international standards.
This ensures that we provide reliable bearing components for high-end equipment in industries such as mining, road construction, and wind power.
Delivery：
1.We will send express delivery for less than 45 kg, which is more convenient door-to-door
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs
Why choose us?
Trusted Product: Durable bearing steel materialFAQ
Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.
Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Do you accept bulk orders and long-term cooperation?
A: Yes, we support mass production and stable long-term supply.
Q5: What about the warranty policy?
A: All items are strictly inspected before shipment. We offer after-sales service for non-artificial quality defects.
Q6: Can you provide product photos, packing list and shipping mark?
A: Sure, we can supply real photos, packing documents and marks once order confirmed.
Warranty
1. Warranty period:A 3-month warranty period is provided for the product from the date of arrival. After the customer arrives, the items should be checked against the order list. Contact us and provide any possible data on the item in question.
2. You need to pay the replacement costs in the following situations:
* Wrong orders from customers.
* Any force majeure causes damage.
* Wrong installation.
* Overtime and overload work on parts.
* Lost due to any circumstances.
* Human factors are destroyed.
* Rust and corrosion during storage and operation.
* The warranty has expired.
3. Other
This kind of product is easy to rust, please pack it and store it properly.
